| Tempat asal: | China |
| Nama merek: | SCED |
| Sertifikasi: | CE,CUL, UL, CQC, VDE etc. |
| Nomor model: | TD40-01-C |
| Kuantitas min Order: | 500 Piece/Pieces |
|---|---|
| Harga: | USD 0.233-0.466 Per Pole |
| Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 5-20 Working Days |
| Syarat-syarat pembayaran: | T/T, L/C |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Saat ini: | 40A | Voltase: | 600V |
|---|---|---|---|
| Melempar: | 13mm | Baut: | M5 |
| Torsi: | 16-18 lbf.in | Pengupasan Panjang: | 8-10mm |
| Plastik: | PBT | Kelas Inflammability: | UL94-V0 |
| Papan Konduksi: | Kuningan | Rentang Kawat: | 8-22 AWG |
| Cahaya Tinggi: | panel mount terminal block connector,pcb mount terminal blocks |
||

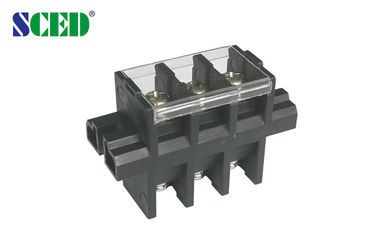

40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT
Detailed product Description:
Pitch 13.0mm, 600V 40A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors
Decks: ■Single Deck; □Double decks; □Triple decks
Standard color: Black.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

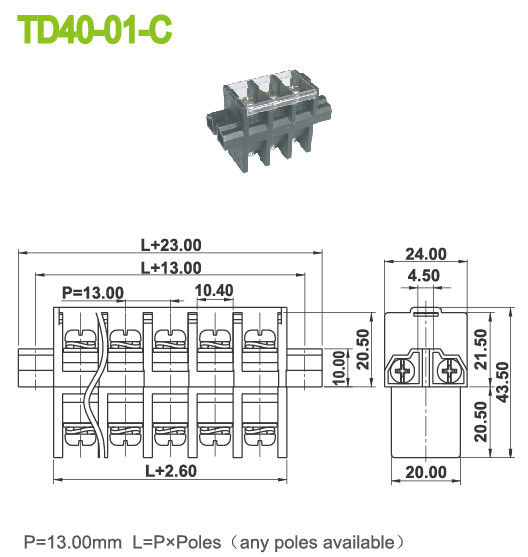

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 40 | 600 / 40 | 600 / 5 |
| Wire Range AWG | 8-22 | 8-22 | 8-22 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 / 40 | 1000 / 40 | 1000 / 40 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 8 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Conduction Board / Plating | Brass / Nickel Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| Stripping Length mm | 8-10 | ||
| Screw / Torque / lbf.in | M5 / 16-18 | ||
Competitive Advantage:
