| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TR500-00-FaM0 |
| Kuantitas min Order: | 500 |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 1KK poles each monthly |
| Type: | Power Terminal Block, PCB screw terminal blocks,Electrical terminal Blocks | Pitch: | 60.00mm |
|---|---|---|---|
| Number Of Contacts: | Any Poles Available | Wire Range: | 350-750kcmil |
| Rated Voltage: | 600V | Rated Current: | 500A |
| Color: | Black | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| Cahaya Tinggi: | power distribution terminal block,electric terminal block |
||

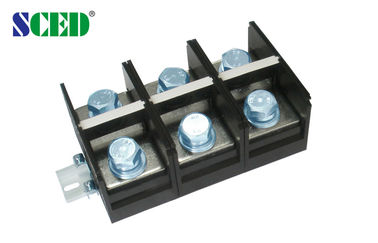

600V 50A Power Terminal Block Black PC Screw Clamp Barrier Strips Connector
Detailed product Description:
High Current Power Terminal Blocks Connectors Pitch 60.00mm 600V 500A any pole available
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

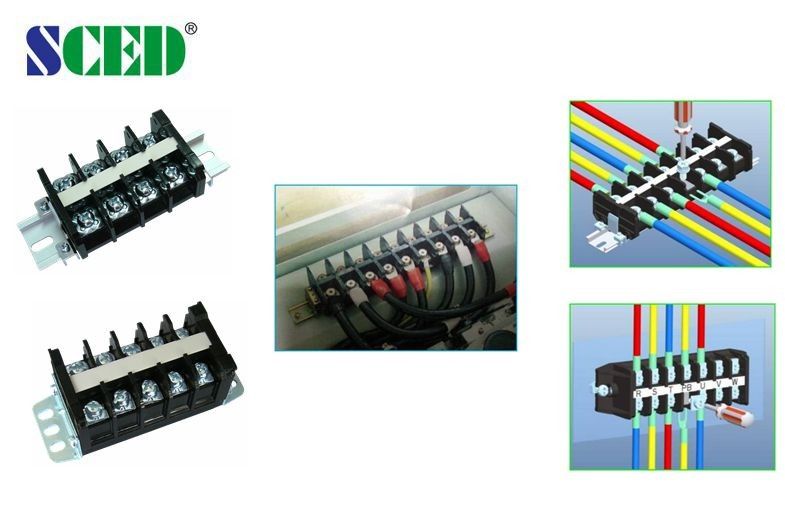

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 500 |
600 / 500 |
|
|
Wire Range AWG |
350-750kcmil |
350-750kcmil |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
1000 / 500 |
1000 / 500 |
1000 / 500 |
|
Rated Surge Voltage KV |
10 |
10 |
10 |
|
Rated Connecting Capacity mm2 |
380 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
30-35 |
||
|
Screw / Torque / lbf.in |
M12 / 200-213 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Tag:
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
