2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm

2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm

    • 2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
    • 2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
    • 2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
  • 2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TP381H-01

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Wire Inlet: Vertical wire inlet Applications: PCB, Frequency Converter,etc.
    Color: Green Number of Contacts: 2-24 pins
    Pitch: 3.81mm Rated Current: 8A
    Rated Voltage: 300V Type: Male Pluggable Terminal Blocks

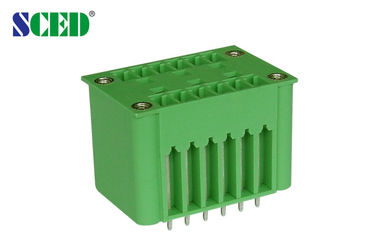

    2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm

    □Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet
    □Single Level;  ■Double Levels;  □Triple Levels

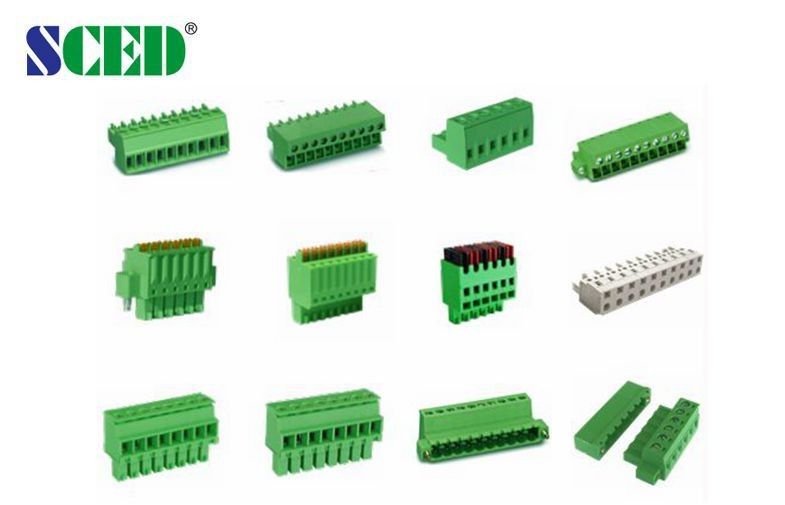

    This male socket match with female plug series: TP381P-00F, TP381P-01F, TP381P-02F, TP381P-03F,   please see the photos show before


    Standard color: Green. Other colors also available,



    please refer to below How to Order and select the color you want.

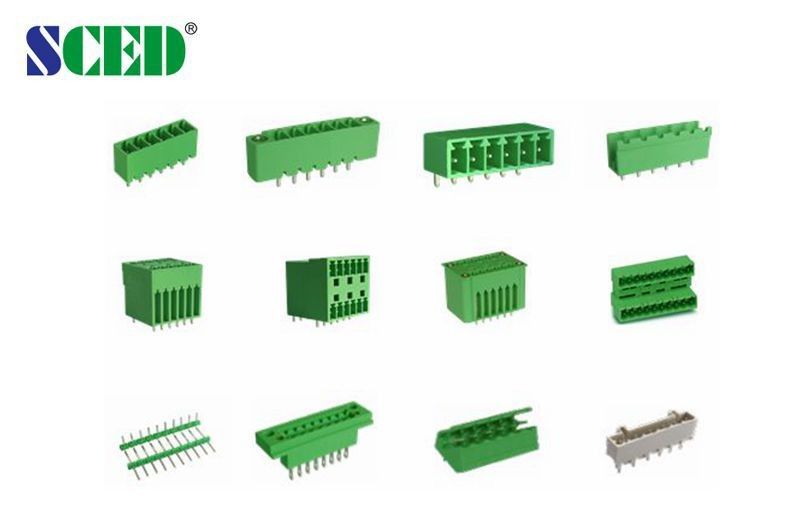

    Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





    How to order:
    2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm


    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,

    Military,
    Elevator, etc..


    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 8





    Wire Range                                AWG







    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    160 / 8

    160 / 8

    320 / 8

    Rated Surge Voltage                   KV

    2.5

    2.5

    2.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Terminal / Plating

    Brass / Tin Plated

    Other Data



    PCB Hole Diameter                       mm

    φ1.2

    PinDimension                                mm

    0.8 x 0.8




    Competitive Advantage:


    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand​​



    Drawing Photo



    2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
