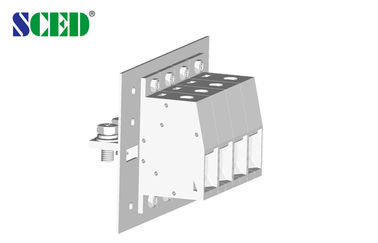

285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors

285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors

    • 285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors
    • 285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors
  • 285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors

    Detail produk:

    Place of Origin: China
    Nama merek: SCED
    Sertifikasi: UL,CE,CUL,CQC and VDE etc.
    Model Number: TR-150N-03F

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500 Piece/Pieces
    Harga: USD 2.546-5.079 PER POLE
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Hubungi sekarang
    Detil Deskripsi produk
    Pitch: 30mm Current: 285A
    Poles: 1-24 Voltage: 600V
    Screw: M10 Torque: 50-60 lbf.in
    Insulation Material: PA66 Color: Grey
    Conduction Board: Copper Stripping Length: 26mm



    285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors



    Detailed product Description:



    Pitch 30.0mm, 600V 285A, 1P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors



    Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    Decks: ■Single Deck; □Double decks; □Triple decks

    Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



    285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors

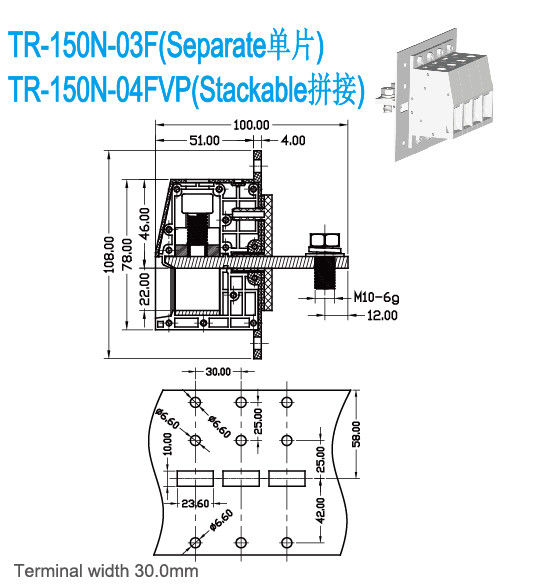

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 285
    Wire Range AWG 2-300kcmil
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 630 / 309 800 / 309 1000 / 309
    Rated Surge Voltage KV 6 6 6
    Rated Connecting Capacity mm2 150
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Steel / Nickel Plated
    Conduction Board / Plating Copper / Nickel Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 26
    Screw / Torque / lbf.in M10 / 50-60



    Applications:



    1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

    2.Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.



    Competitive Advantage:



    1. OEM and ODM service
    2. 10 main series and more than 1000 models for selection
    3. Stable high quality
    4. Competitive price
    5. Good service

    285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors
