Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Aplikasi: | PCB, Konverter Frekuensi, Situs Server, dll. | Nomor kontak: | 2P-24P |
|---|---|---|---|
| Nada: | 5.08mm | Populer saat ini: | 10A |
| Tegangan pengenal: | 300V | Tipe: | PCB Terminal Block, PCB mount terminal blocks, PCB screw terminal blocks |
| Cahaya Tinggi: | pcb screw terminal blocks,pcb mount terminal block |
||

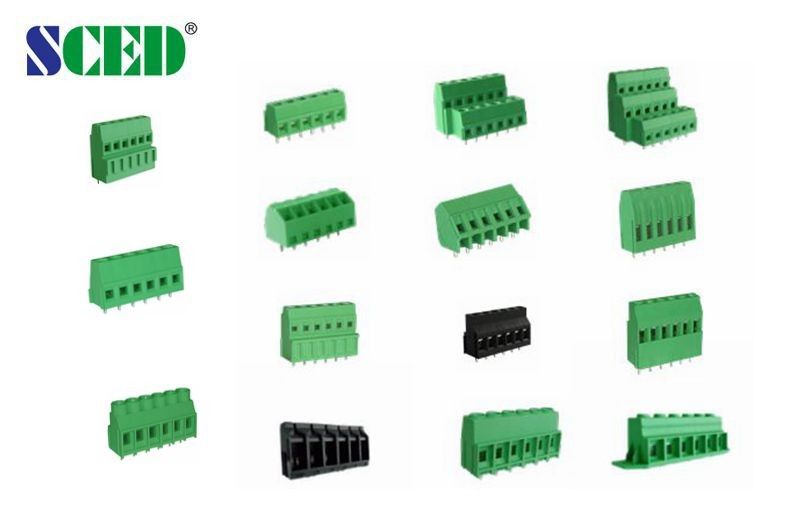

5.08mm Screw Clamp Connector electrical power distribution terminal blocks UL Certificated
|
Type: |
PCB Terminal blocks, |
Pitch: |
5.08mm |
|
Rated Voltage: |
300V |
Rated Current: |
10A |
|
Standard Color: |
Green, other color is available |
Number Of Contacts: |
2P-24P |
|
Wire Range: |
12-26AWG |
Applications: |
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Elevator, etc. |
Euro type Raising series, Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/10 |
|
300/10 |
|
Wire Range AWG |
12-26 |
|
12-26 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 10 |
400 / 10 |
630 / 10 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.5 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M3 / 4.4-5.3 |
||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Competitive Advantage:
