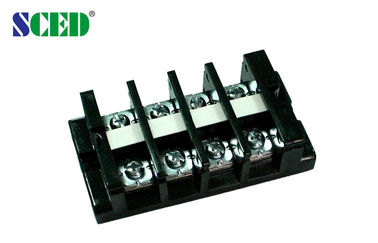

19.00mm Panel Mount High Current Terminal Block pluggable 600V 60A

19.00mm Panel Mount High Current Terminal Block pluggable 600V 60A

    • 19.00mm Panel Mount High Current Terminal Block pluggable 600V 60A
    • 19.00mm Panel Mount High Current Terminal Block pluggable 600V 60A
  • 19.00mm Panel Mount High Current Terminal Block pluggable 600V 60A

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE, CQC
    Model Number: TR60-01-BM0-N2

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Type: Panle mount type Pitch: 19.00mm
    Poles: Any poles Materail: PBT
    Color: Black Screw: M6



    19.00mm Panel Mount High Current Terminal Block pluggable 600V 60A





    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 60 600 / 60
    Wire Range AWG 4-20 4-20
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 800 /60 1000 / 60 1000 / 60
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 14
    Material
    Insulation Material / Inflammability Class PC / UL94, V-0
    Conduction Board/ Plating Brass /Nickel Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 12-15
    Screw Torque mm M6 / 18-22







    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:



    19.00mm Panel Mount High Current Terminal Block pluggable 600V 60A



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand



    19.00mm Panel Mount High Current Terminal Block pluggable 600V 60A
