5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal

5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal

    • 5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal
    • 5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal
  • 5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TP508H-04

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Type: PCB Type Color: Greem
    Item: Plug in type, male type material: PA66
    Pitch: 5.08mm Poles: 2-18 poles

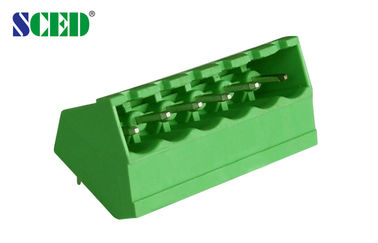

    5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal



    □Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet

    ■Single Level; □Double Levels; □Triple Levels



    This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508H-10, TP508H-10V





    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/18   300/10
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 250 / 18 400 / 18 500 / 18
    Rated Surge Voltage KV 4 4 4
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Terminal / Plating Brass / Tin Plated
    Other Data
    PCB Hole Diameter mm φ1.4
    Pin Dimension mm 1.0 x 1.0





    5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal



    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





    Competitive Advantage:



    • Stable good quality
    • Competitive price
    • Quickly response

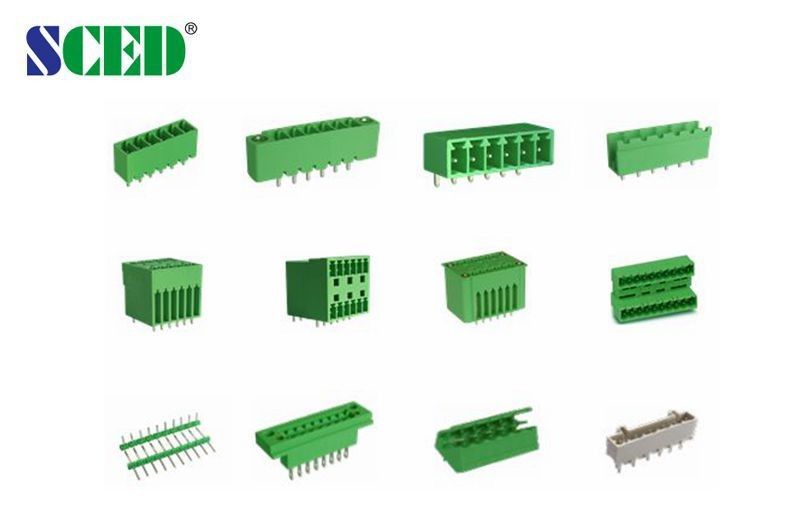

    • Full range products for selection
    • Flexible to design the exact part per customers’ demand





    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





    Tag:

    Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors



    5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal
