| Tempat asal: | Guangdong,China |
| Nama merek: | SCED |
| Sertifikasi: | CE，UL，CUL，VDE，CQC etc. |
| Nomor model: | TB1100-02 |
| Kuantitas min Order: | 500 Piece/Pieces |
|---|---|
| Harga: | USD 0.153-0.203 |
| Kemasan rincian: | Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198 |
| Waktu pengiriman: | 5-20 days |
| Syarat-syarat pembayaran: | T/T, L/C |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Bahan: | PBT kuningan | Arus: | 30A |
|---|---|---|---|
| tegangan: | 300V | Mengetik: | Penghalang PCB |
| Polandia yang tersedia: | 2-22 tiang | Kelas Peradangan: | UL94, V-0 |
| Hubungi perlawanan: | Kurang dari 8mΩ | Dinilai Tegangan Surge: | Tidak ada yang abnormal dalam 1 menit |
| Nada: | 11,00 mm | Resistansi isolasi: | Di atas DC500V, 500MΩ |
| Cahaya Tinggi: | electrical terminal block,barrier type terminal block |
||

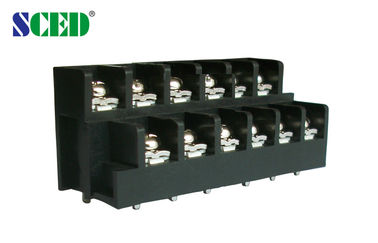

4-16 Poles PCB Dual Row terminal block barrier Pitch 11mm Screw Terminal Connector
Detailed product Description:
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double levels; □Triple levels
Standard color: Black. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 30 |
|
300 / 10 |
|
Wire Range AWG |
12-24 |
|
12-24 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 32 |
800 / 32 |
1000 / 32 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
4 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass /Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ2.3 |
||
|
Stripping Length mm |
9-10 |
||
|
Screw / Torque / lbf.in |
M 4 / 10-13 |
||
Competitive Advantage:
