Male Type PCB Plug In Terminal Block PA66 Green Connector 3.50 3.81 5.08 7.62mm

Male Type PCB Plug In Terminal Block PA66 Green Connector 3.50 3.81 5.08 7.62mm

    • Male Type PCB Plug In Terminal Block PA66 Green Connector 3.50 3.81 5.08 7.62mm
    • Male Type PCB Plug In Terminal Block PA66 Green Connector 3.50 3.81 5.08 7.62mm
    • Male Type PCB Plug In Terminal Block PA66 Green Connector 3.50 3.81 5.08 7.62mm
  • Male Type PCB Plug In Terminal Block PA66 Green Connector 3.50 3.81 5.08 7.62mm

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TP381H-01

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Kawat Inlet: Saluran masuk kawat vertikal Aplikasi: PCB, Konverter Frekuensi, dll.
    Warna: hijau Nomor kontak: 2-24 pin
    Nada: 3.81mm Populer saat ini: 8A
    Tegangan pengenal: 300V Mengetik: Blok Terminal Pluggable Pria

    Male Type PCB Plug In Terminal Blcok PA66 Green Connector 3.50 3.81 5.08 7.62mm




    Quick Detail



    1. Pluggable terminal blocks is widely used in servo drive, security commucation, power industry, energy conservation and etc.



    1. Multiple pitch: 2.54mm, 3.50mm,3.81mm,5.00mm, 5.08mm,7.62mm

    2. The pluggable system work toghter by plug and header.



    3. The main characteristics is they can be achieved power on or off freely.



    4. The plug can be plugged in and out very conveniently.



    5. Material: Plastic housing is PA66(UL94 V-0), operating temperature: -40℃~+105℃ Clamp cage and header terminal using brass, spring clamp with phosphor bronze, screw using high quality steel.

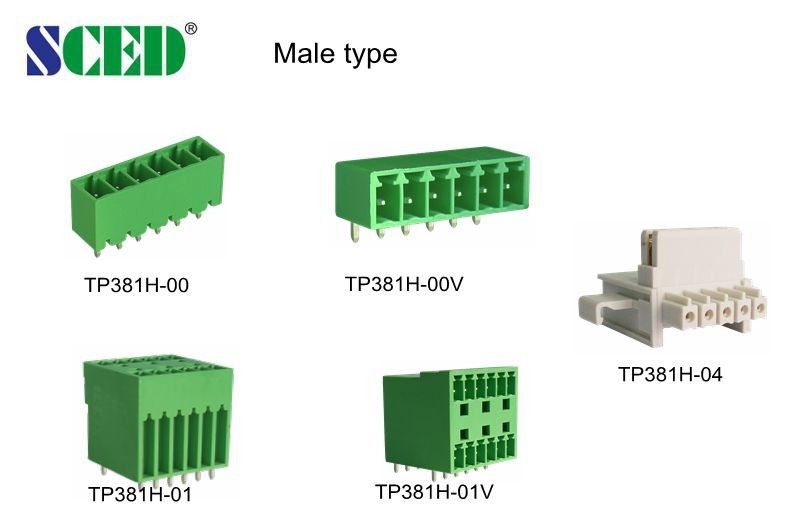

    This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03,

    TP381P-04, please see the photos show before

    Standard color: Green. Other colors also available, please refer to below How to Order and select the color

    you want.


    Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





    How to order:
    Male Type PCB Plug In Terminal Block PA66 Green Connector 3.50 3.81 5.08 7.62mm


    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
    Elevator, etc..


    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 8





    Wire Range                                AWG







    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    160 / 8

    160 / 8

    320 / 8

    Rated Surge Voltage                   KV

    2.5

    2.5

    2.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Terminal / Plating

    Brass / Tin Plated

    Other Data



    PCB Hole Diameter               mm

    φ1.2

    PinDimension                       mm

    0.8 x 0.8




    Competitive Advantage:


    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand​​

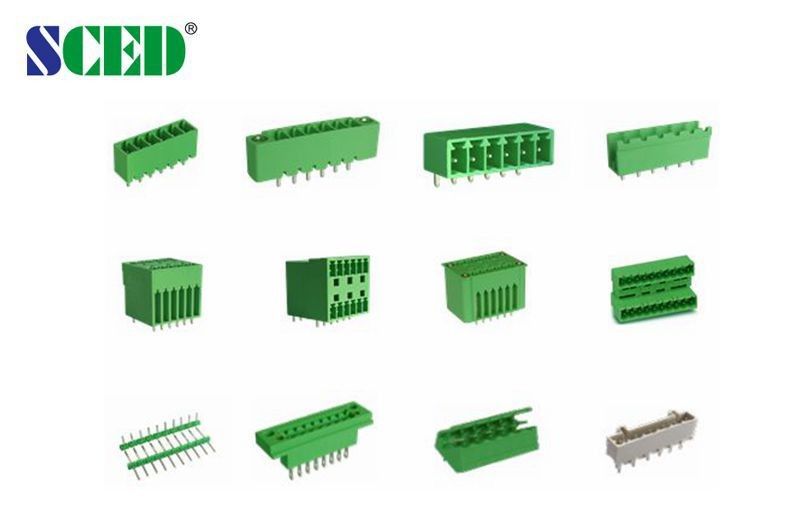

    Drawing Photo



    Male Type PCB Plug In Terminal Block PA66 Green Connector 3.50 3.81 5.08 7.62mm



    Male Type PCB Plug In Terminal Block PA66 Green Connector 3.50 3.81 5.08 7.62mm
