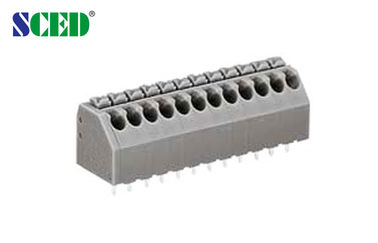

PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm

PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm

    • PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
    • PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
  • PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TJ381-03-D6

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Item: Spring Item: Spring
    Current: 5a Current: 5a
    Voltage: 300v Material: PA66
    Poles: 1p Any poles Poles: 1p Any poles
    Wire Range: 16-22 AWG Wire Range: 16-22 AWG

    PCB Spring Terminal Block 5AMP 16-22 AWG PCB Screwless Terminal Connector





    Quick Details:



    For the pcb spring terminal blocks,

    1. Multiple pitch: 2.54mm, 3.50mm,3.81mm,5.00mm,5.08mm,7.62mm
    2. Diverse wire inlet direction
    3. Compact structure
    4. Simple operating
    5. Strong vibration resistance



    Spec.:



    300V/5A

    16-22 AWG

    PA66 Material

    Phosphor Bronze Terminal

    PCB Hole Diameter: φ1.2



    Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/5





    Wire Range                                 AWG

    16-22





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                V/A

    320 / 5

    400 / 5

    630 / 5

    Rated Surge Voltage                     KV

    4

    4

    2.5

    Rated Connecting Capacity           mm2

    1.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Spring / Plating



    Terminal / Plating

    Phosphor Bronze / Tin Plated

    Other Data



    PCB Hole Diameter               mm

    φ1.2

    Stripping Length                    mm

    8-9



    Competitive Advantage:

    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand



    Application:



    1. Lighting
    2. Instrument
    3. Power supply
    4. Lift, etc.

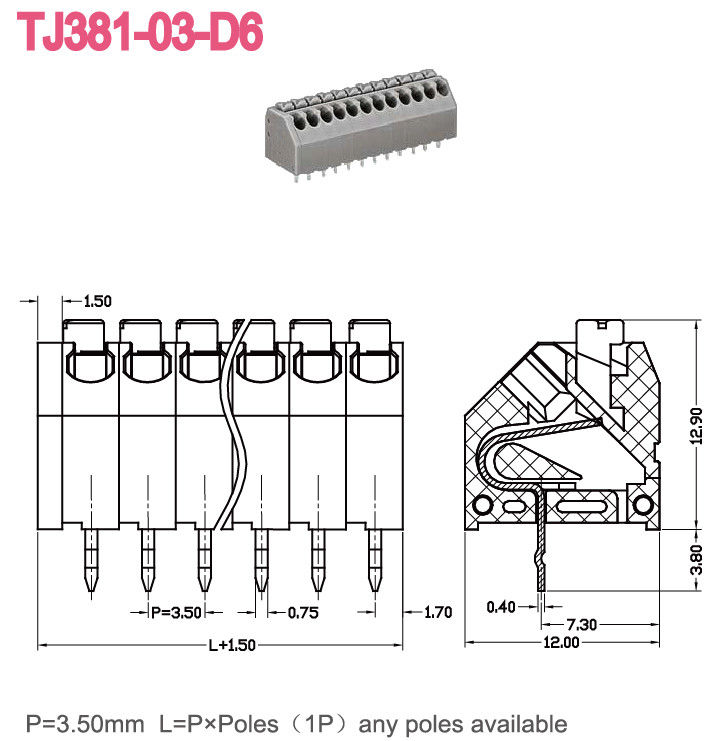

    Photo of Drawing

    PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm

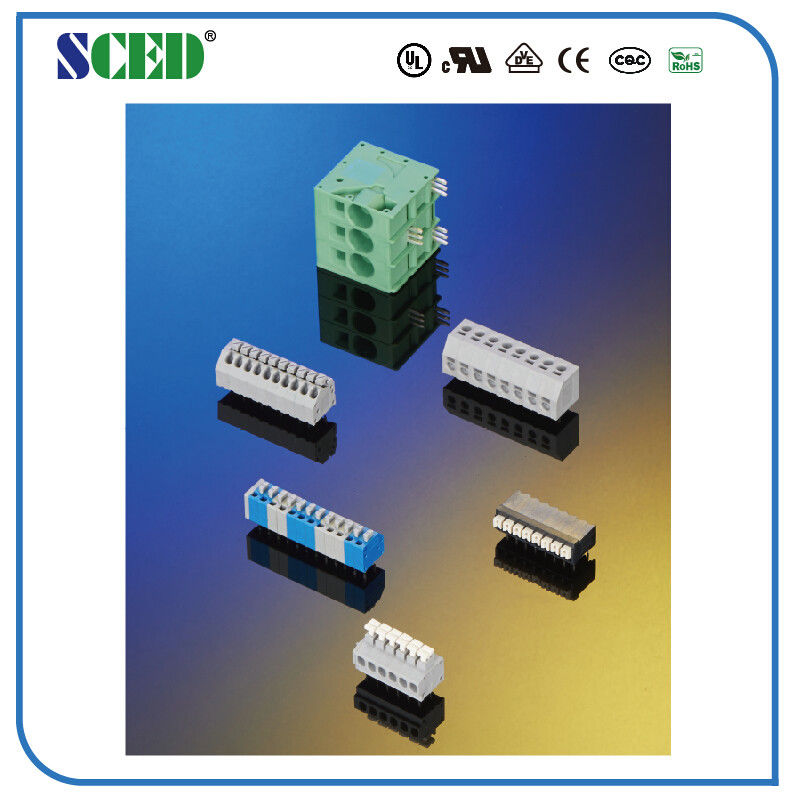

    More Products:



    PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm



    Packing Photo:



    PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
