| Tempat asal: | China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TB762-14V |
| Kuantitas min Order: | 500 |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 1KK poles each monthly |
| Nada: | 7.62mm | Polandia: | 2-14 |
|---|---|---|---|
| Warna: | Hitam | Bahan: | PBT |
| Kata kunci: | blok terminal penghalang | Nama Produk: | Blok terminal PCB |
| Cahaya Tinggi: | barrier type terminal block,pcb terminal blocks |
||

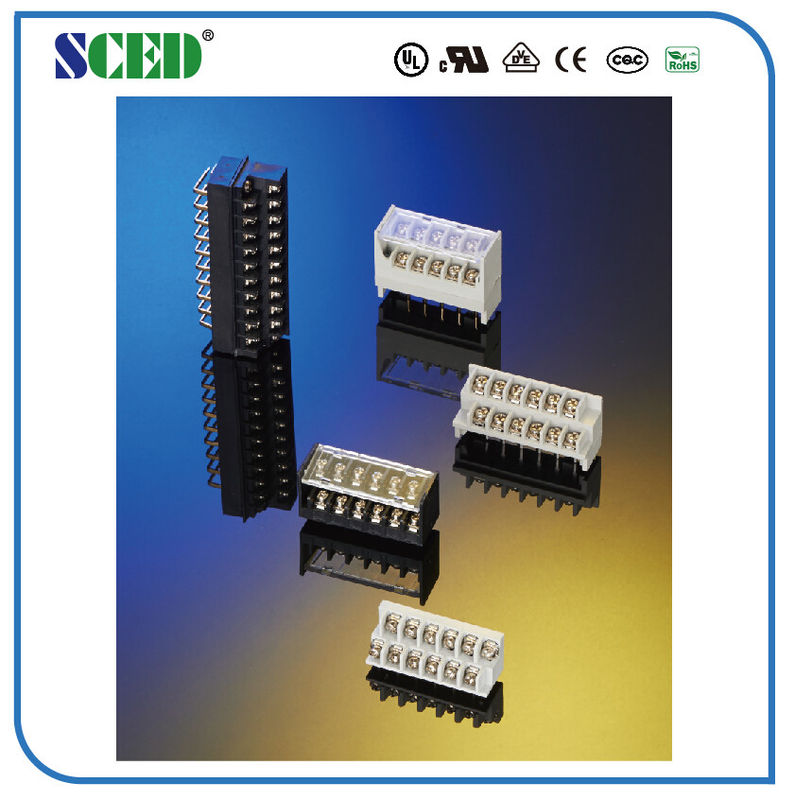

PCB Screw Connector Barrier Terminal Block 7.62mm 9.52mm For Inverter Power
Quick Details:
1. PCB barrier Terninal Blocks is widely used in automation, frequency conversion, communication, power supply and etc.
2. Multiple Pitch: 7.62mm,8.25mm,8.70mm,9.525mm,10.00mm,11.00mm,13.00mm,13.50mm,14.50mm,20.00mm,21.00mm
3. With or without cover, one or two rows, from one level to three levels, etc.
4. Materials: Plastic housing is PBT(UL94 V-0) Operating temperature: -40~+120 Clamp cage and terminal is high quality brass or copper screw is high-quality steel
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 15 |
|
300 / 10 |
|
Wire Range AWG |
14-24 |
|
14-24 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass /Tin Plated |
||
|
Screw / Plating |
Steel / Nickel plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.7 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5-7 |
||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Competitive Advantage:

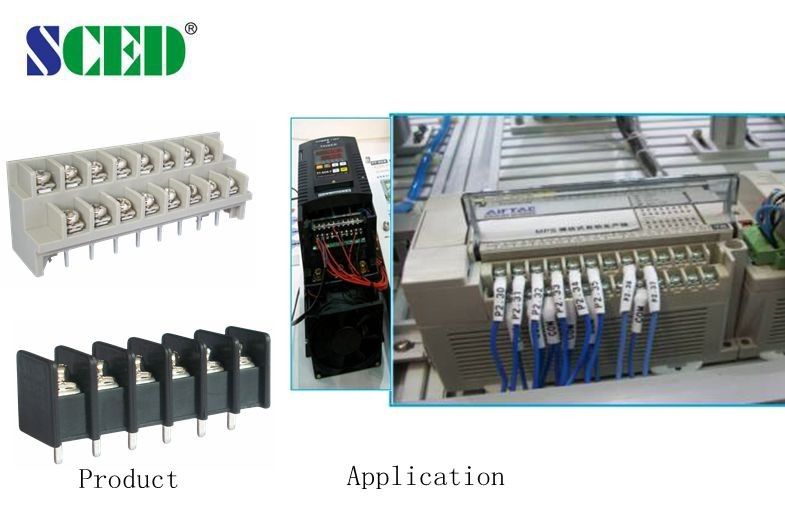

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Drawing photo

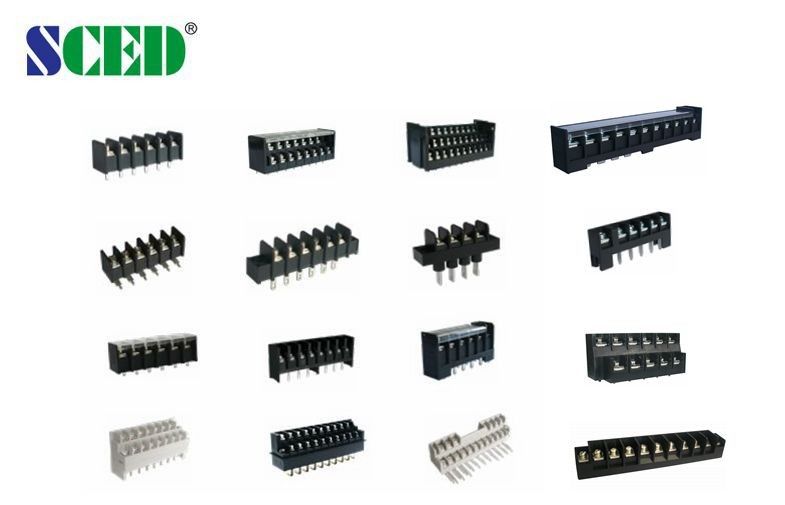

More products
