Tempat asal: | Shenzhen, China |
Nama merek: | SCED |
Sertifikasi: | UL, CE |
Nomor model: | TJ508-07 |
Kuantitas min Order: | 500 |
---|---|
Harga: | Get latest price |
Kemasan rincian: | Standard Export Carton |
Waktu pengiriman: | 7-20 working days |
Syarat-syarat pembayaran: | T/T |
Menyediakan kemampuan: | 1KK poles each monthly |
Aplikasi: | PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri | Warna: | hijau |
---|---|---|---|
Nomor kontak: | 2P-24P | Nada: | 5.08mm |
Populer saat ini: | 10A | Tegangan pengenal: | 300V |
Cahaya Tinggi: | pcb screw terminal blocks,pcb terminal block connectors |

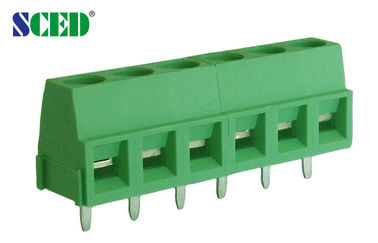

PCB Terminal Block PA66 PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm
Quick Details:
1. PCB Euro Terninal Blocks is widely used in industry and automatic control, power, frequency conversion and etc.
2. It is consisted of plastic housing, clamp cage, terminal and screw.
3. It can be stacked to be different poles via 2P and 3P,
4. Wire inlet Direction: 45 90 180degree
4. Materials: Plastic housing is PA66(UL94 V-0) Operating temperature: -40~+105 Clamp cage and terminal is high quality brass or copper screw is high-quality steel
Data
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300/10 |
|
300/10 |
Wire Range AWG |
12-26 |
|
12-26 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
250 / 10 |
400 / 10 |
630 / 10 |
Rated Surge Voltage KV |
4 |
4 |
4 |
Rated Connecting Capacity mm2 |
1.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Clamp Cage / Plating |
Brass / Nickel Plated |
||
Terminal / Plating |
Brass / Tin Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.4 |
||
Stripping Length mm |
6-7 |
||
Screw / Torque / lbf.in |
M3 / 4.4-5.3 |
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Competitive Advantage:

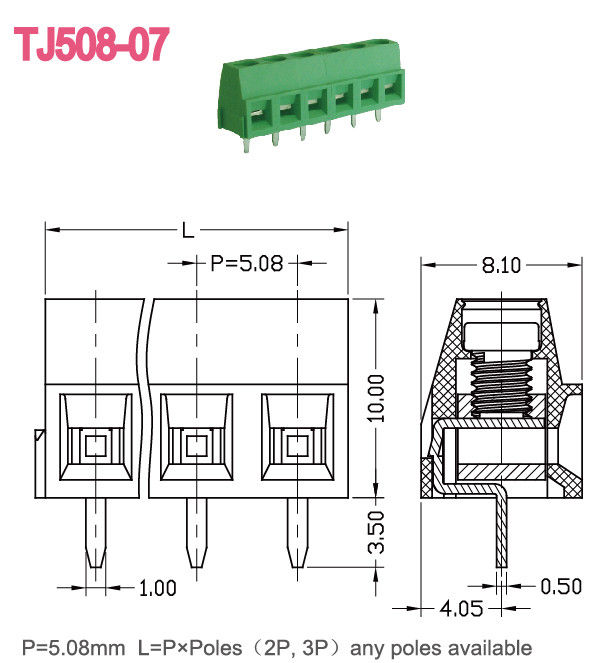

Drawing photo:

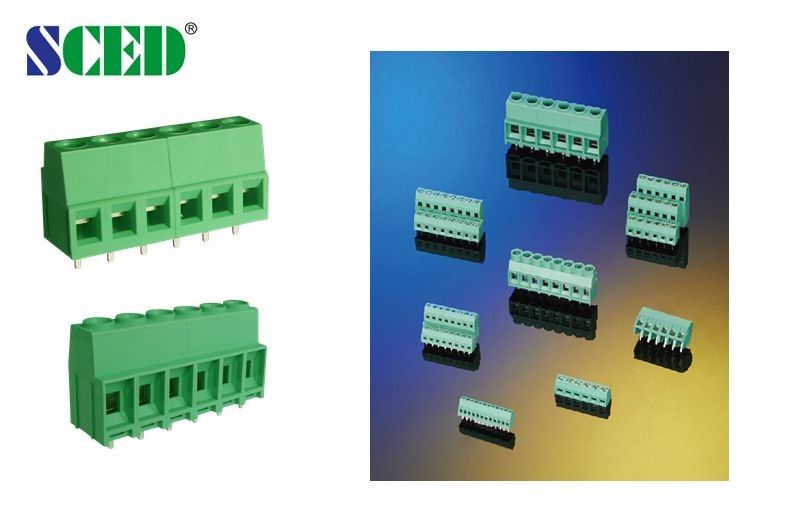

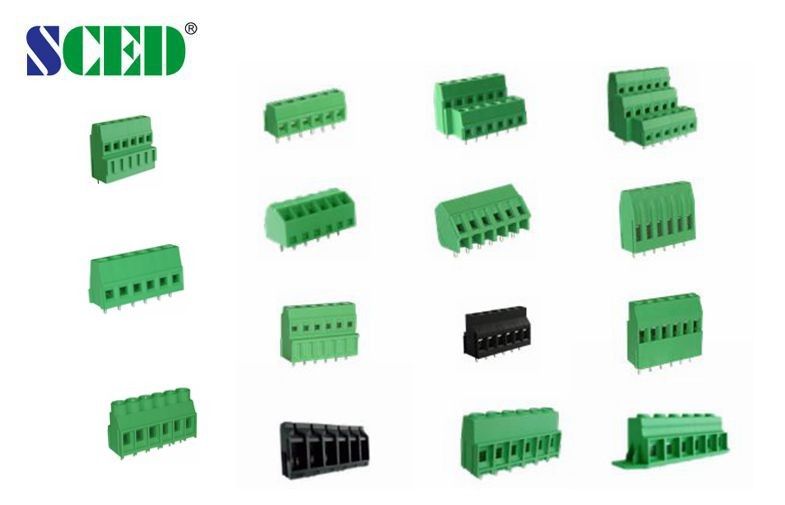

Photo of more products
Tag:
PCB mount terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer
