Tempat asal: | Guangdong, China |
Nama merek: | SCED |
Sertifikasi: | UL,CE etc. |
Nomor model: | TB1450-00-D5-C |
Kuantitas min Order: | 500 Piece/Pieces |
---|---|
Harga: | USD 0.253-0.56 Per Pole |
Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm |
Waktu pengiriman: | 5-20 Working Days |
Syarat-syarat pembayaran: | L/C, T/T |
Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
Baut: | M5 | Torsi: | 18-20 lbf.in |
---|---|---|---|
Warna: | Hitam | Saat ini: | 40A |
Voltase: | 600V | Melempar: | 14.5mm |
Polandia: | 4-14 kutub | Jangkauan Kawat: | 22-8 AWG |
Plastik: | PBT | Terminal: | Kuningan |
Cahaya Tinggi: | electrical terminal block,barrier type terminal block |

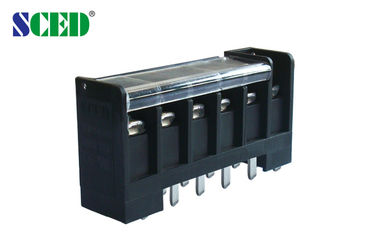

American Power Barrier Terminal Block Black 14.5mm Pitch 40A with Cover 4-14 Poles
Detailed product Description:
Pitch 14.50mm, 600V 40A, 4-14P, Barrier Terminal Blocks, Power Terminal Blocks
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Levels: ■Single Level; □Double levels; □Triple levels
Standard color: Black.
Other colors are also available, please refer to below How to Order and select the color you want.
How to order:

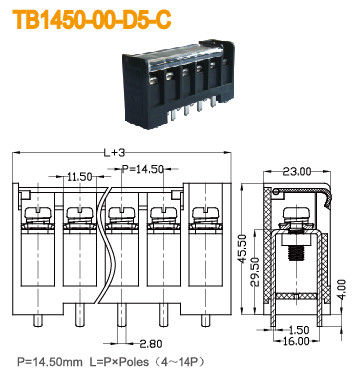

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 40 | 600 / 40 | 600 / 5 |
Wire Range AWG | 202-8 | 22-8 | 22-8 |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 500 / 40 | 800 / 40 | 1000 / 40 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 6 | ||
Material | |||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Terminal / Plating | Brass /Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data | |||
PCB Hole Diameter mm | 1.9x3.2 | ||
Stripping Length mm | 12-15 | ||
Screw / Torque / lbf.in | M 5 / 18-20 |
Applications:
Generally speaking, our products can be used in below fields:
1. Power Supply, Communication, Automation, Industrial Control
2. PCB, Medical Equipment, Switch, Server Site
3. Elevator, Military, Security, Rail Transportation etc.
Competitive Advantage:
