Tempat asal: | Guangdong,China |
Nama merek: | SCED |
Sertifikasi: | CE,UL,CUL,CQC and VDE etc. |
Nomor model: | TJ508-16 |
Kuantitas min Order: | 1000 Piece/Pieces |
---|---|
Harga: | USD 0.05-0.12 Per Pole |
Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
Waktu pengiriman: | 5-20 Working Days |
Syarat-syarat pembayaran: | L/C, T/T |
Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
Jangkauan Kawat: | 12-26 AWG | Baut: | M3 |
---|---|---|---|
Pengupasan Panjang: | 6-7mm | Melempar: | 5.08mm |
Saat ini: | 10A | Voltase: | 300V |
Penjepit Kandang: | Kuningan | Kelas Inflammability: | UL94-V0 |
Bahan Isolasi: | PA66 | Polandia: | 2-24 tiang |
Cahaya Tinggi: | barrier terminal block connector,pcb terminal block connector |

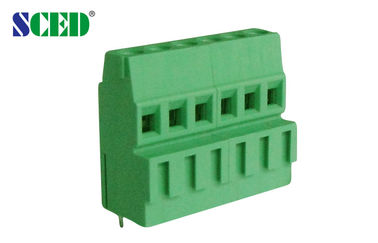

Green Terminal Block Connector 300V/10A M3 Screw 6-7mm Stripping Length 12-26AWG
Detailed product Description:
Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series
Wire Inlet: ■Right angle wire inlet
Decks: ■Single Deck
Standard color: Green.
Other colors are also available, please refer to below How to Order and select the color you want.
How to order:

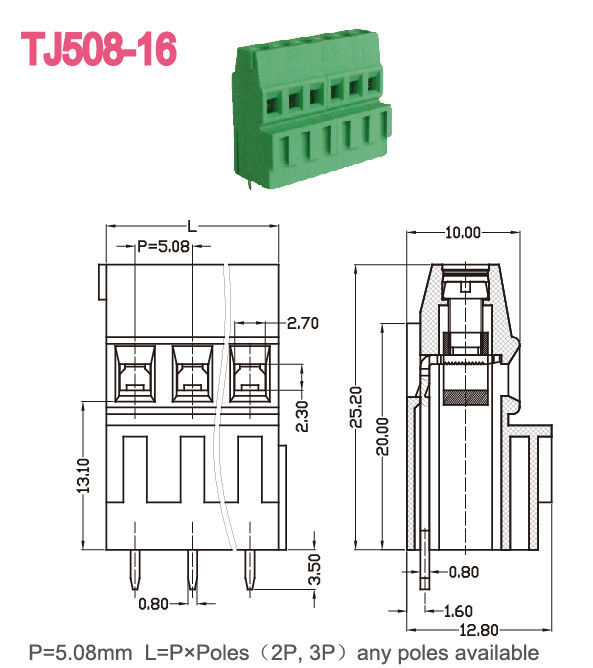

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 10 | 300 / 10 | |
Wire Range AWG | 12-26 | 12-26 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 250 / 10 | 400 / 10 | 630 / 10 |
Rated Surge Voltage KV | 4 | 4 | 4 |
Rated Connecting Capacity mm2 | 2.5 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ1.4 | ||
Stripping Length mm | 6-7 | ||
Screw / Torque / lbf.in | M3 / 4.4-5.3 |
Competitive Advantage:
Applications:
Generally speaking, our products are used in a lot of fileds and industries, for example: Security, Industrial Control, Power Supply, Medical Equipment, Military, Electonics, PCB and so on.
