Tempat asal: | Guangdong, China |
Nama merek: | SCED |
Sertifikasi: | CE, UL, CUL, CQC and VDE etc. |
Nomor model: | TJ952-04-A1 |
Kuantitas min Order: | 500 Piece/Pieces |
---|---|
Harga: | USD 0.114-0.228 Per Pole |
Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm. |
Waktu pengiriman: | 5-20 Working Days |
Syarat-syarat pembayaran: | L/C, T/T |
Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
Jarak: | 10.16mm | Warna: | Hijau |
---|---|---|---|
Jangkauan Kawat: | 6-22 AWG | Saat ini: | 57A |
Pengupasan Panjang: | 9-11mm | Baut: | M4 |
Polandia: | 2-16 tiang | Plastik: | PA66 |
Penjepit Kandang: | Kuningan | Resistansi Isolasi: | Di atas DC500V, 500MΩ |
Cahaya Tinggi: | screw type terminal block,screw terminal block connector |

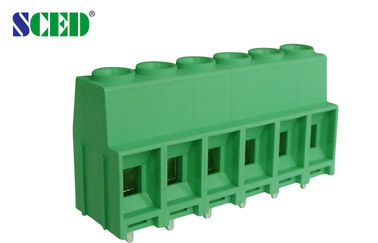

Pitch 10.16mm PCB Screw Terminal Block Euro Type Raising Series 57A 2-16 Poles
Detailed product Description:
Pitch 10.16mm, 300V 57A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
Wre Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Decks: ■Single Deck; □Double decks; □Triple decks
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Our products can be used in Power Supply, Military, Security, PCB, Automation, Communication, Industrial Control, Medical Equipment etc.

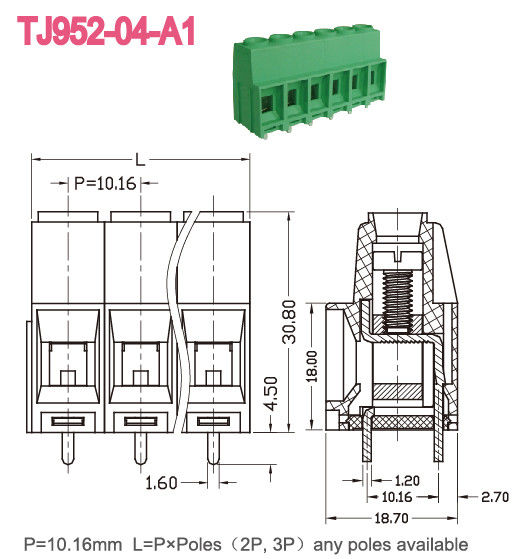

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/57 | 300/57 | |
Wire Range AWG | 6-22 | 6-22 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 630 / 57 | 1000 / 57 | 1000 / 57 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 10 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ2.2 | ||
Stripping Length mm | 9-11 | ||
Screw / Torque / lbf.in | M4 / 10.6-13 |
Competitive Advantage:
