Tempat asal: | Shenzhen, China |
Nama merek: | SCED |
Sertifikasi: | UL, CE |
Nomor model: | TB762-01V |
Kuantitas min Order: | 500 |
---|---|
Harga: | Get latest price |
Kemasan rincian: | Standard Export Carton |
Waktu pengiriman: | 7-20 working days |
Syarat-syarat pembayaran: | T/T |
Menyediakan kemampuan: | 1KK poles each monthly |
Nada: | 7.62mm | Warna: | Hitam |
---|---|---|---|
Nomor kontak: | 2P-24P | Berbagai Wire: | 14-22AWG |
Tegangan pengenal: | 300V | Populer saat ini: | 15A |
Kata kunci: | Blok terminal penghalang, Blok terminal daya | Aplikasi: | PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri |
Cahaya Tinggi: | electrical terminal block,pcb terminal blocks |

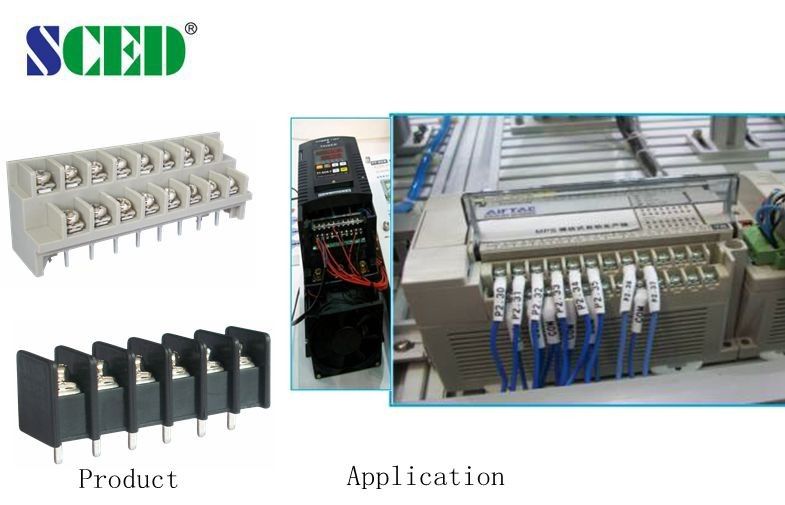

7.62mm Electrical Barrier Terminal Block for Server Site 300V 15A Screw Fence Connector
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
2-24Poles
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you
want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers
How to order:
Parameter:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300/15 |
|
300/10 |
Wire Range AWG |
14-22 |
|
14-22 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
Rated Surge Voltage KV |
4 |
4 |
4 |
Rated Connecting Capacity mm2 |
2.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
Terminal / Plating |
Brass / Tin Plated |
||
Screw / Plating |
Steel / Nickel Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.5 |
||
Stripping Length mm |
7-8 |
||
Screw / Torque / lbf.in |
M 3 / 5-7 |
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Drawing Photo
