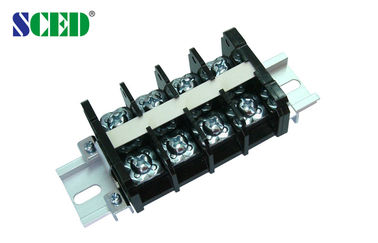

600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks

600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks

    • 600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks
    • 600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks
  • 600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TR60-01-FaM0

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Pitch: 14.00mm Number Of Contacts: Any Poles Available
    Rated Voltage: 600V Rated Current: 60A
    Color: Black Wire range: 4-20 AWG
    Key words: Male Pin Header Application: Industrial Control Power supply etc.


    600V 60A Din Rail Mounted Terminal Block 14.00mm Electrical Screw Terminal Blocks




    High Current Terminal connectors
    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
    ■Single Level;  □Double levels;  □Triple levels
    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors


    Parameter



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 60

    600 / 60



    Wire Range                               AWG

    4-20

    4-20



    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                V/A

    800 /60

    1000 / 60

    1000 / 60

    Rated Surge Voltage                     KV

    8

    8

    8

    Rated Connecting Capacity           mm2

    14

    Material



    Insulation Material / Inflammability Class

    PC / UL94, V-0

    Conduction Board/ Plating

    Brass /Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                   mm

    12-15

    Screw Torque                       mm

    M6 / 18-22


    How to order:
    600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks

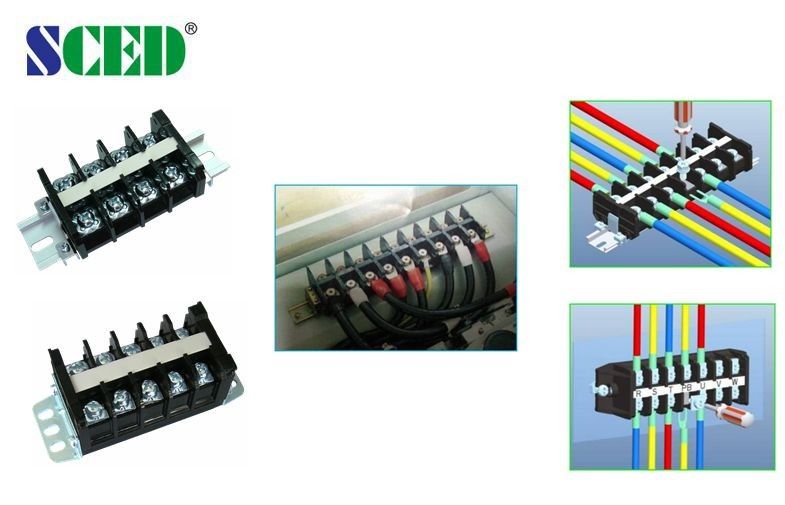

    Applications:


    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Competitive Advantage:


    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    Drawing Photo



    600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks
