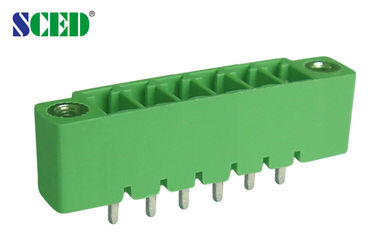

Flange Mount Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors

Flange Mount Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors

    • Flange Mount  Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors
    • Flange Mount  Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors
  • Flange Mount  Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TP381H-00F

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Pitch: 3.81mm Poles: 2-20 poles
    Material: PA66 Terminal: Brass material
    Voltage: 300V Current: 8A



    Flange Mount Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connector





    □Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

    ■Single Level; □Double Levels; □Triple Levels



    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/8
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
    Rated Surge Voltage KV 2.5 2.5 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Terminal / Plating Brass / Tin Plated
    Other Data
    PCB Hole Diameter mm φ1.2
    Pin Dimension mm 0.8 x 0.8





    How to order:

    Flange Mount  Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors



    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





    Competitive Advantage:



    • Stable good quality
    • Competitive price
    • Quickly response

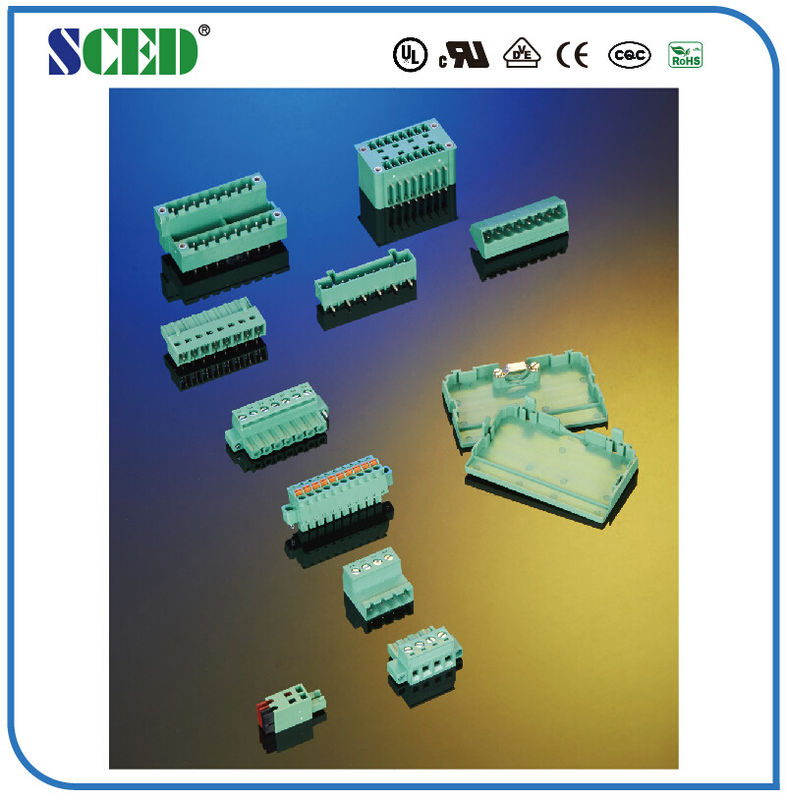

    • Full range products for selection
    • Flexible to design the exact part per customers’ demand
    •

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





    Flange Mount  Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors

    Flange Mount  Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors
