10mm Pitch Power Barrier Terminal Block With 2-20 Poles 15A Brass 16-24 AWG

10mm Pitch Power Barrier Terminal Block With 2-20 Poles 15A Brass 16-24 AWG

Produk - Blok terminal penghalang
  • Menyoroti

    electrical terminal block

    ,

    pcb terminal blocks

  • Warna
    Hitam
  • Melempar
    10mm
  • Polandia
    2-20 tiang
  • Voltase
    300V
  • Saat ini
    15A
  • Baut
    M4
  • Pengupasan Panjang
    9-10mm
  • Bahan Isolasi
    PBT
  • Tegangan Lonjakan Terukur
    Tidak ada kelainan dalam 1 menit
  • Resistansi Isolasi
    Di atas DC500V, 500MΩ
  • Place of Origin
    China
  • Nama merek
    SCED
  • Sertifikasi
    CE,UL
  • Model Number
    TB1000-01
  • Minimum Order Quantity
    500 Piece/Pieces
  • Harga
    USD 0.064-0.128 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

10mm Pitch Power Barrier Terminal Block With 2-20 Poles 15A Brass 16-24 AWG

Dapatkan Harga Hubungi sekarang

10mm Pitch Power Barrier Terminal Block 2-20 Poles 15A Brass 16-24 AWG





Detailed product Description:



Pitch 10.00mm, 300V 20A, 2P-20P, Barrier Terminal Blocks, Power Terminal Blocks

Wire Inlet: ■Right angle wire inlet

Levels: ■Single Level

Standard color: Black.

Other colors can be also available, please refer to below How to Order and select the color you want.



How to order:

10mm Pitch Power Barrier Terminal Block With 2-20 Poles 15A Brass 16-24 AWG 0

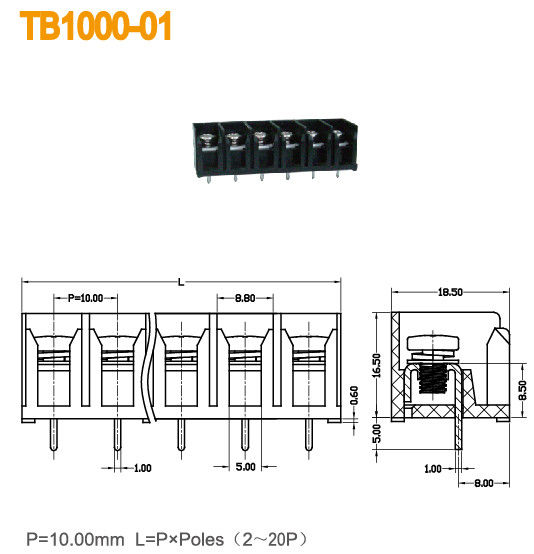

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 15   300 / 10
Wire Range AWG 16-24   16-24
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 500 / 17.5 630 / 17.5 8000 / 17.5
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.8
Stripping Length mm 9-10
Screw / Torque / lbf.in M 4 / 10-12



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. More than 1000 models for selection

10mm Pitch Power Barrier Terminal Block With 2-20 Poles 15A Brass 16-24 AWG 1
