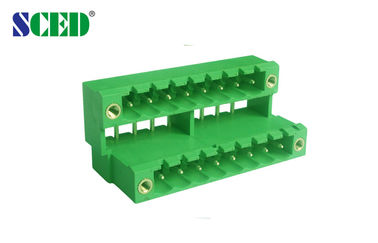

Male Sockets Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm Pitch

Male Sockets Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm Pitch

  • Male Sockets Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm Pitch
  • Male Sockets Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm Pitch
Male Sockets Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm Pitch
Detail produk:
Tempat asal: China
Nama merek: SCED
Sertifikasi: CE,UL
Nomor model: TP508H-06VF
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 500 Piece/Pieces
Harga: USD 0.025-0.05 Per Pole
Kemasan rincian: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Waktu pengiriman: 5-20 Working Days
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 1000000 Pole/Poles per Month
Kontak
Detil Deskripsi produk
Tegangan Lonjakan Terukur: Tidak ada kelainan dalam 1 menit Resistansi Isolasi: Di atas DC500V, 500MΩ
tingkat: tingkat ganda Warna: Hijau
Melempar: 5.08mm Jenis: Bagian pria
Bahan Isolasi: PA66 Penjepit Kandang: Kuningan
Kelas Inflammability: UL94-V0 Polandia: 2-22 kutub
Cahaya Tinggi:

electrical terminal blocks

,

plug in terminal block

Male Sockets Pluggable Terminal Blocks Headers 2*2-2*22 Poles 5.08mm Pitch



Detailed product Description:



Header, Male Sockets, Pitch: 5.08mm, 300V 18A, 2*2P-22*2P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Levels: □Single Level; ■Double Levels; □Triple Levels



This male header match with female plugs’ series: TP508P-00F, TP508P-02F, TP508P-03F, TP508P-04F, TP508P-05F, TP508P-07F



Standard color: Green.

Other colors can be also available as required, please refer to below How to Order and select the color you want.



How to order:



Male Sockets Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm Pitch 0

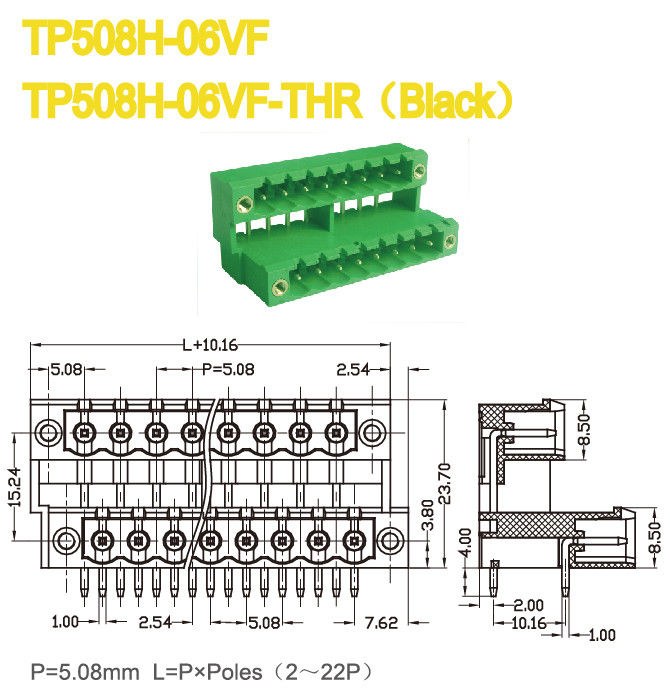

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18   300/18
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 18 400 / 18 500 / 18
Rated Surge Voltage KV 4 4 4
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.4
Pin Dimension mm 1.0 x 1.0



Applications:

1. PCB, Frequency Converters, Server Site, Switch

2. Power Supply, Electric Lighting, Industry Control, Automation

3. Rail Transportation, Communication, Electric Power, Security

4. Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Flexible to design the exact part per customers’ demand
  2. Quick response
  3. High quality and competitive price
  4. More than 1000 models for selection

Male Sockets Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm Pitch 1
