| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TR-150N-03F |
| Kuantitas min Order: | 200 |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 100K poles each monthly |
| Type: | Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks | Pitch: | 30.00mm |
|---|---|---|---|
| Number Of Contacts: | 1P-24P | Wire Range: | 2-300kcmil |
| Rated Voltage: | 600V | Rated Current: | 285A |
| Color: | Grey | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| Cahaya Tinggi: | wiring terminal block,feed through terminal blocks |
||

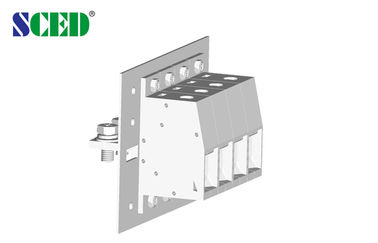

600V 285A Through Panel Terminal Blocks 30.00mm 1-24 Number Of Contact Electric Terminal
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 285 |
|
|
|
Wire Range AWG |
2-300kcmil |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 309 |
800 / 309 |
1000 / 309 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
150 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Steel / Nickel Plated |
||
|
Conduction Board / Plating |
Copper / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
26 |
||
|
Screw / Torque / lbf.in |
M10 / 50-60 |
||
Competitive Advantage:
1, Stable good quality 2, Competitive price 3. Quickly response
4. Full range products for selection 5. Flexible to design the exact part per customers’ demand

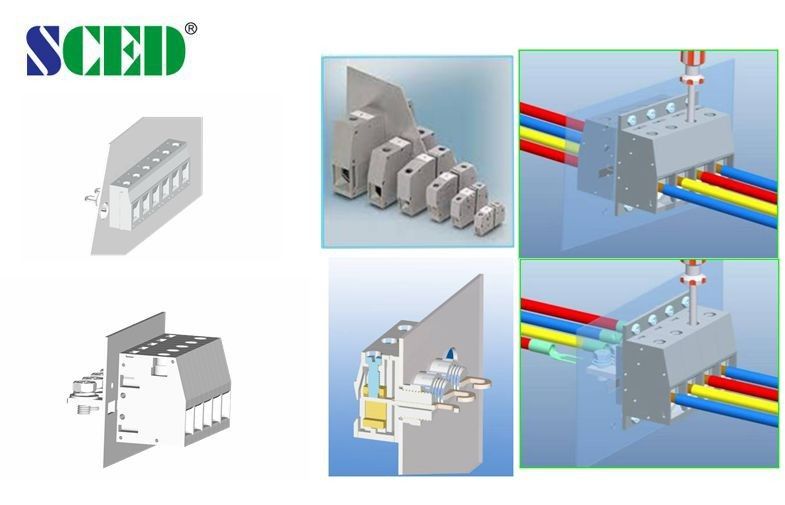

Drawing Photo
