| Tempat asal: | Guangdong, China |
| Nama merek: | SCED |
| Sertifikasi: | CE,UL |
| Nomor model: | TP508H-76V |
| Kuantitas min Order: | 1000 Piece/Pieces |
|---|---|
| Harga: | USD 0.018-0.045 Per Pole |
| Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 5-20 Working Days |
| Syarat-syarat pembayaran: | T/T, L/C |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Warna: | Hijau | Voltase: | 300V |
|---|---|---|---|
| Melempar: | 7.62mm | Saat ini: | 18A |
| Polandia: | 2-16 tiang | Terminal: | Kuningan |
| Resistensi Kontak: | Kurang dari 8mΩ | Tegangan Lonjakan Terukur: | Tidak ada kelainan dalam 1 menit |
| Kelas Inflammability: | UL94, V-0 | Resistansi Isolasi: | Di atas DC500V, 500MΩ |
| Cahaya Tinggi: | pluggable terminal block connector,electrical terminal blocks |
||

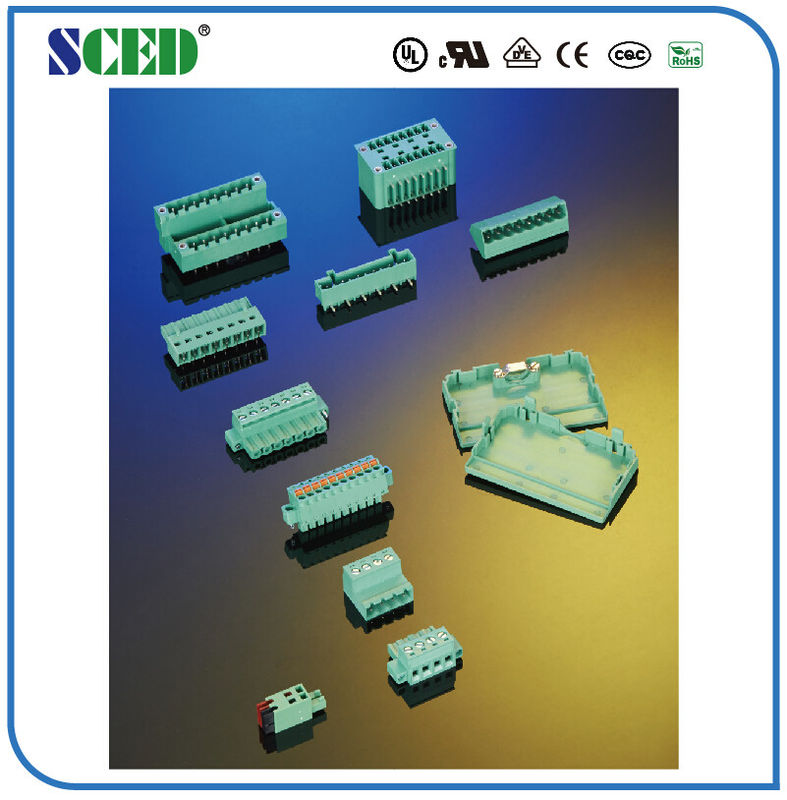

Male Pluggable Terminal Block Green Color Right Angle 7.62mm 300V 18A
Detailed product Description:
Header, Male Sockets, Pitch: 7.62mm, 300V 18A, 2-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
This male header match with female plugs’ series: TP508P-76, TP508P-77, TP508P-78, TP508P-79
Wire Inlet: ■Right angle wire inlet
Levels: ■Single Level
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
Applications:
1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control 2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military and Elevator and so on.
Competitive Advantage:
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 400 / 18 | 630 / 18 | 1000 / 18 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Pin Dimension mm | 1.0 x 1.0 | ||
