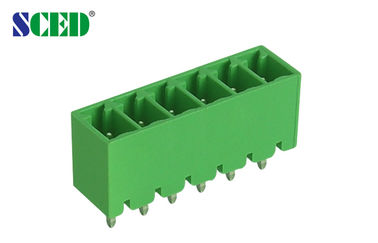

8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class

8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class

  • 8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class
  • 8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class
8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class
Detail produk:
Tempat asal: Guangdong, China
Nama merek: SCED
Sertifikasi: CE,UL
Nomor model: TP381H-20
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1000 Piece/Pieces
Harga: USD 0.018-0.05 PER Pole
Kemasan rincian: Standard Master Carton Dimension: 341 x 273 x 198mm.
Waktu pengiriman: 5-20 Working Days
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 1000000 Pole/Poles per Month
Kontak
Detil Deskripsi produk
Polandia: 2-22 kutub Jenis: Bagian laki-laki
Melempar: 3.5mm Voltase: 300V
Saat ini: 8A Bahan Isolasi: PA66
Terminal: Kuningan pelapisan: berlapis timah
Tegangan Lonjakan Terukur: 2.5KV Diameter Lubang PCB: 1-2mm
Cahaya Tinggi:

pluggable terminal block connector

,

plug in terminal block

8A Pluggable Terminal Block Male Part Pitch 3.5mm 300V UL94-V0 Class





Detailed product Description:



Header, Male Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



This header match with plug series: TP381P-20, TP381P-21, TP381P-22, TP381P-23



Wire Inlet: □Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

Levels: ■Single Level; □Double Levels; □Triple Levels



Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.



8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class 0

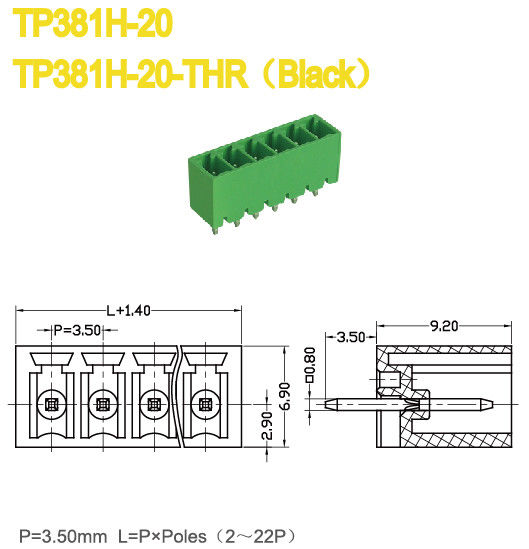

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 8
Wire Range AWG
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.2
PinDimension mm 0.8 x 0.8



Applications:

Our products can be used in lots of fields and industries, such as PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Security, Medical Equipment and Military and so on.





Competitive Advantage:

  1. More than 10 years of experience in desinging and manufacturing
  2. OEM and ODM service
  3. High quality and competitive price
  4. More than 1000 models for selection

8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class 1
