Tempat asal: | China |
Nama merek: | SCED |
Sertifikasi: | CE,UL |
Nomor model: | TP508P-76 |
Kuantitas min Order: | 1000 Piece/Pieces |
---|---|
Harga: | USD 0.06-0.12 PER Pole |
Kemasan rincian: | Standard export packing carton, or according to customers demand. |
Waktu pengiriman: | 5-20 Working Days |
Syarat-syarat pembayaran: | T/T, L/C |
Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
Warna: | Hijau | Melempar: | 7.62mm |
---|---|---|---|
Jenis: | Menyambungkan | Saat ini: | 8A |
Voltase: | 300V | Polandia: | 2-24 tiang |
Bahan Isolasi: | PA66 | Baut: | M2 |
Torsi: | 2-2.2 lbf.in | Penjepit Kandang: | Kuningan |
Cahaya Tinggi: | power terminal block connector,electric terminal block |

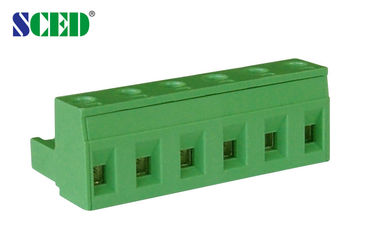

Green Color Plug In Terminal Block Brass Female Connectors Pitch 7.62mm
Detailed product Description:
Plug, Female, Pitch: 7.62mm, 300V 18A, 2P-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
This female plug match with male sockets’ series: TP508H-76, TP508H-76V, TP508H-77, TP508H-77V
Levels: ■Single Level
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Communication, Electric Power, Security, Medical Equipment, Military and so on.

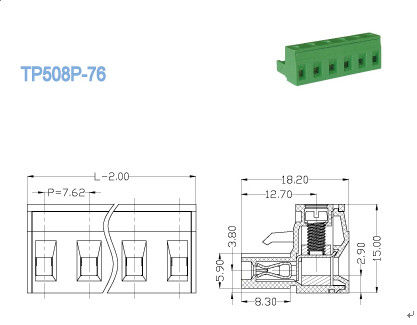

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 18 | 300 / 18 | |
Wire Range AWG | 12-30 | 12-30 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 400 / 18 | 630 / 18 | 1000 / 18 |
Rated Surge Voltage KV | 6 | 6 | 6 |
Rated Connecting Capacity mm2 | 2.5 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Terminal / Plating | Phosphor Bronze / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data | |||
Stripping Length mm | 7 | ||
Screw / Torque / lbf.in | M3 / 4.4-5.3 |
Competitive Advantage:
