| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TB952-02 |
| Kuantitas min Order: | 500 |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 1KK poles each monthly |
| Nada: | 9.525mm | Warna: | Hitam |
|---|---|---|---|
| Populer saat ini: | 20A | Tegangan pengenal: | 300V |
| Polandia: | 2-24 P | Bahan: | PBT |
| Cahaya Tinggi: | electrical terminal block,pcb terminal blocks |
||

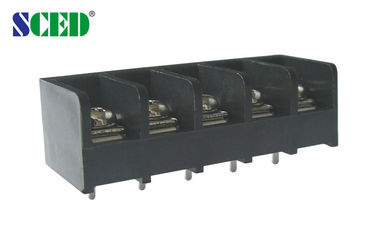

9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector
Parameter
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 20 | 300 / 10 | |
| Wire Range AWG | 12-22 | 12-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 500 / 32 | 630 / 32 | 800 / 32 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 4 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ2.1 | ||
| Stripping Length mm | 8-9 | ||
| Screw / Torque / lbf.in | M 3.5 / 7-10 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
Stable good quality
Competitive price
Quickly response

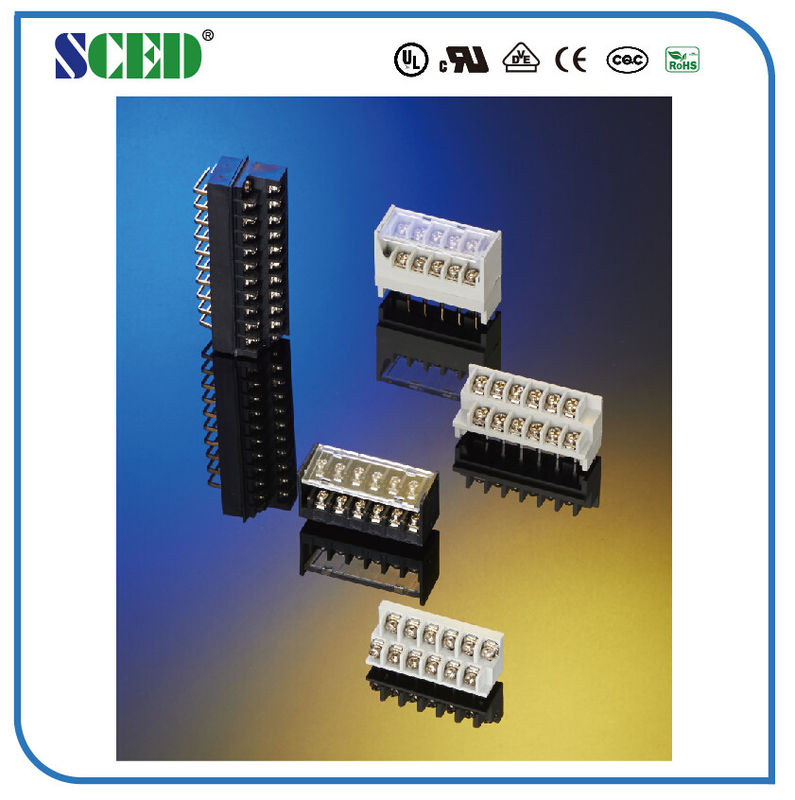

Full range products for selection
Flexible to design the exact part per customers’ demand
Drawing Photo
