Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nada: | 3.81mm | Warna: | hijau |
|---|---|---|---|
| Dinilai Currennt: | 8A | Tegangan pengenal: | 300 |
| Bahan: | PA66 | Berbagai Wire: | 16-30 AWG |
| Tiang yang tersedia: | 2-24 P | Item: | Blok Terminal Wanita Pria |
| Cahaya Tinggi: | power terminal block connector,electric terminal block |
||
Plug - in Terminal Blocks Male Female Terminal Block Connector 3.81mm 2P-24P 300V 8A
■ Single Level; □Double Levels; □Triple Levels
Parameter
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/8 | ||
| Wire Range AWG | 16-30 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
| Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
| Rated Connecting Capacity mm2 | 1.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Steel / Zinc Plated | ||
| Contactor / Plating | Phosphor Bronze / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 7 | ||
| Screw / Torque / lbf.in | M2 / 2-2.2 | ||
How to order:
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Tag:
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

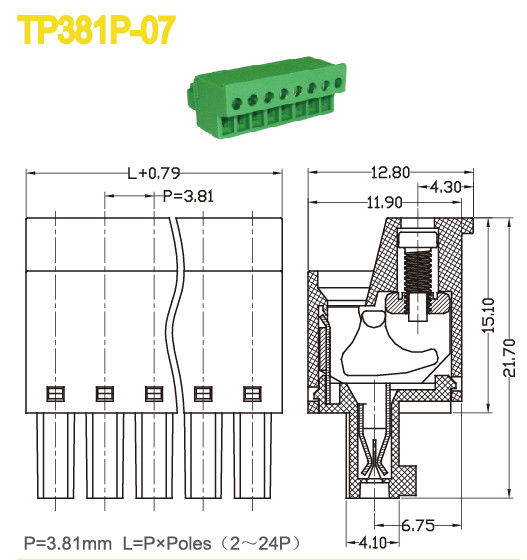

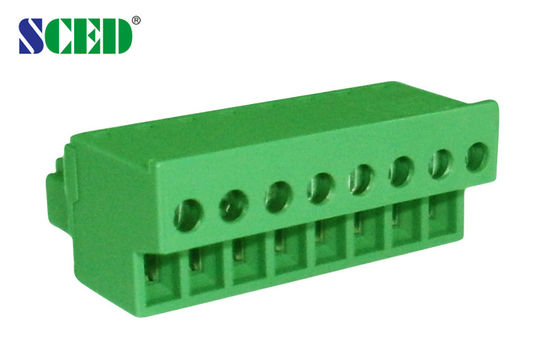

Drawing Photo
