| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TP381H-07V |
| Kuantitas min Order: | 500 |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 1KK poles each monthly |
| Nada: | 3.81mm | Warna: | hijau |
|---|---|---|---|
| Tegangan pengenal: | 300V | Dinilai Currennt: | 8A |
| Tiang yang tersedia: | 2-24P | Bahan Isolasi: | PA66 |
| Cahaya Tinggi: | power terminal block connector,electric terminal block |
||

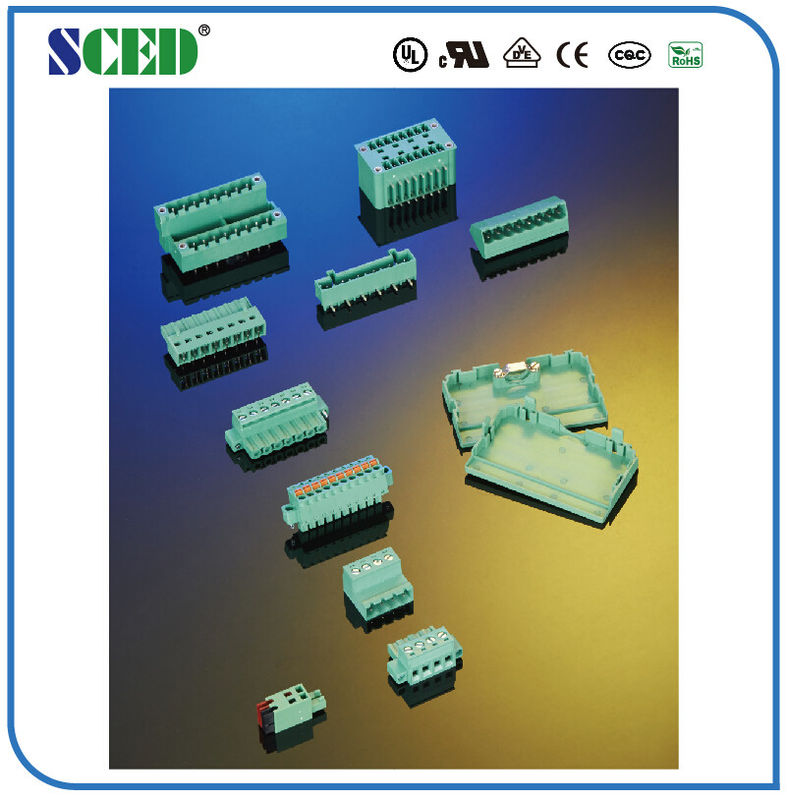

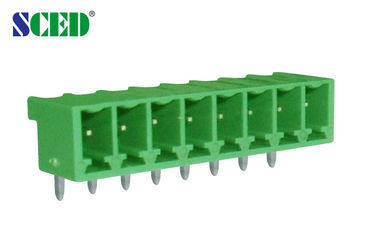

2P - 24P Plug In Female Terminal Block 3.81mm 300V 8A Male Female Connector
■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■ Single Deck; □Double decks; □Triple decks
Parameter
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/8 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
| Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.2 | ||
| Pin Dimension mm | 0.8 x 0.8 | ||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
