Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Jenis: | Bagian wanita | Warna: | Hijau |
|---|---|---|---|
| Melempar: | 5.08mm | Resistansi Isolasi: | Di atas DC500V, 500MΩ |
| Kelas Inflammability: | UL94, V-0 | Tegangan Lonjakan Terukur: | Tidak ada kelainan dalam 1 menit |
| Resistensi Kontak: | Kurang dari 8mΩ | Saat ini: | 18A |
| Polandia: | 2-22 kutub | Voltase: | 300V |
| Cahaya Tinggi: | pluggable terminal block connector,electrical terminal blocks |
||

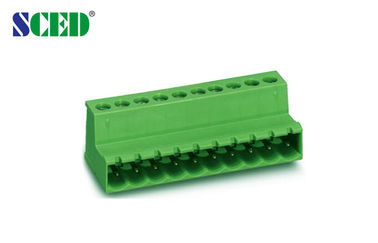

2-22 Poles Pluggable Terminal Block 5.08mm Pitch Female Part 300V 18A
Detailed product Description:
Plug, Male, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
Levels: ■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Medical Equipments, Communication, Power Supply, Automation, Security, Industrial Control, PCB etc..
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| Wire Range AWG | 12-30 | 12-30 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 320 / 18 | 630 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Contactor / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 7 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
