Tempat asal: | China |
Nama merek: | SCED |
Sertifikasi: | UL,CE etc. |
Nomor model: | TJ952-02 |
Kuantitas min Order: | 500 Piece/Pieces |
---|---|
Harga: | USD 0.5-0.12 Per Pole |
Kemasan rincian: | Standard export packing carton, or according to customers demand. |
Waktu pengiriman: | 5-20 Working Days |
Syarat-syarat pembayaran: | L/C, T/T |
Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
Baut: | M3 | Resistansi Isolasi: | Di atas DC500V, 500MΩ |
---|---|---|---|
Tegangan Lonjakan Terukur: | Tidak ada kelainan dalam 1 menit | Warna: | Hijau |
Melempar: | 7.62mm | torsi: | 10.6-13 lbf.in |
Saat ini: | 30A | Voltase: | 300V |
Plastik: | PA66 | Terminal: | Kuningan |
Cahaya Tinggi: | screw type terminal block,screw terminal block connector |

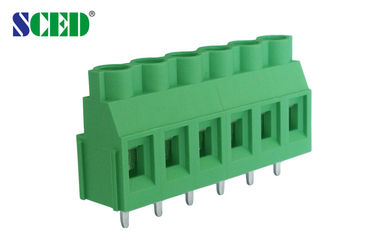

Brass PCB Screw Terminal Block 7.62mm Pitch M3 300V 30A PA66 UL94-V0 Class
Detailed product Description:
Pitch 7.62mm, 300V 30A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
■ Right angle wire inlet
■ Single Deck
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:

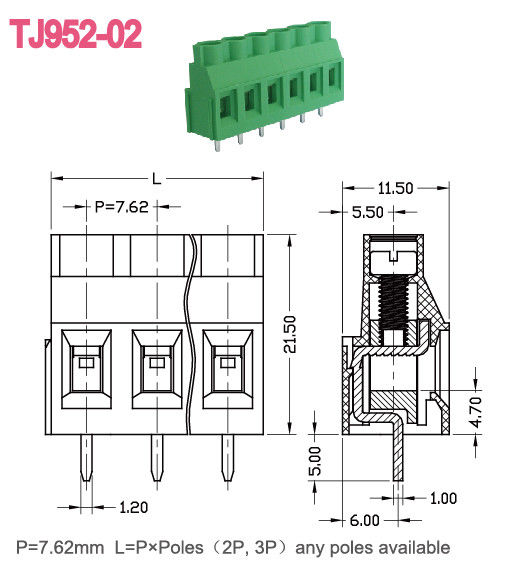

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 30 | 300 / 30 | |
Wire Range AWG | 10-30 | 10-30 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 630 / 32 | 1000 / 32 | 1000 / 32 |
Rated Surge Voltage KV | 6 | 8 | 6 |
Rated Connecting Capacity mm2 | 4.0 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ1.9 | ||
Stripping Length mm | 7-8 | ||
Screw / Torque / lbf.in | M3 / 4.4-5.3 |
Competitive Advantage:
