Tempat asal: | China |
Nama merek: | SCED |
Sertifikasi: | UL,CE |
Nomor model: | TP381H-07V |
Kuantitas min Order: | 500 Piece/Pieces |
---|---|
Harga: | USD 0.015-0.032 per Pole |
Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
Waktu pengiriman: | 5-20 Working Days |
Syarat-syarat pembayaran: | L/C, T/T |
Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
Melempar: | 3.81mm | Voltase: | 300V |
---|---|---|---|
Saat ini: | 8A | Polandia: | 2-24 tiang |
Dimensi Pin: | 0.8*0.8mm | Diameter Lubang PCB: | 1.2mm |
Terminal: | Kuningan | Bahan Isolasi: | PA66 |
Kelas Inflammability: | UL94-V0 | Jenis: | Bagian laki-laki |
Cahaya Tinggi: | power terminal block connector,electric terminal block |

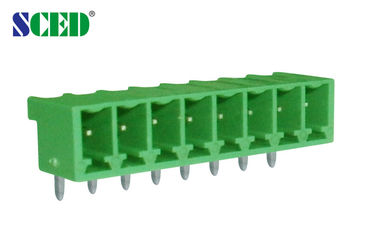

Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P Brass
Detailed product Description:
Pitch: 3.81mm, 300V 8A, 2P-24P, Socket, Pluggable Terminal blocks, Plug-in terminal block
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Levels: ■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Our terminal blocks can be used in the following fields and industries:
1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

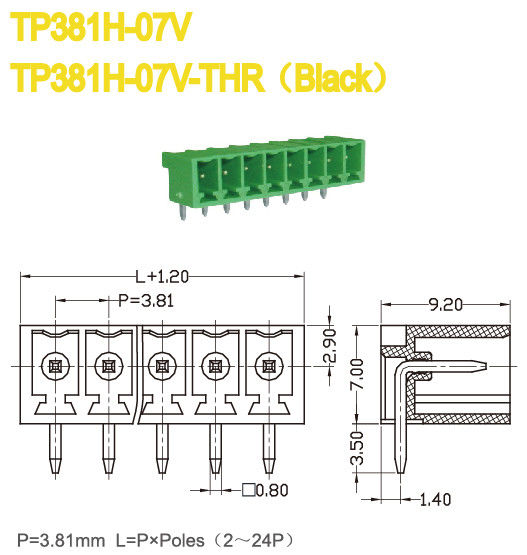

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/8 | ||
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Terminal / Plating | Brass / Tin Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ1.2 | ||
Pin Dimension mm | 0.8 x 0.8 |
Competitive Advantage:
1. Flexible to design the exact part per customers’ demand
2. Stable good quality and competitive price
3. More than 1000 models for selection
4. Quick response and good after-sales service.
