| Tempat asal: | China |
| Nama merek: | SCED |
| Sertifikasi: | UL,CE,CUL,CQC and VDE etc. |
| Nomor model: | TB820-00 |
| Kuantitas min Order: | 1000 Piece/Pieces |
|---|---|
| Harga: | USD 0.9-1.9 per pcs |
| Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 5-20 working days |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Tingkat: | Dua tingkat | Jenis: | Penghalang |
|---|---|---|---|
| Polandia: | 27 tiang | Melempar: | 8.2mm |
| Saat ini: | 10A | Baut: | M3 |
| Voltase: | 300V | Jangkauan Kawat: | 14-22 AWG |
| Terminal: | Kuningan | Torsi: | 5-7 lbf.in |
| Cahaya Tinggi: | power distribution terminal block,power terminal block connector |
||

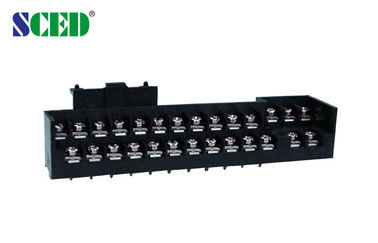

Double Rows Power Terminal Blocks 27 Poles M3 Screw 10A 300V
Detailed product Description:
Pitch 8.20mm, 300V 10A, 27*2P, Barrier Terminal Blocks, Power Terminal Blocks
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Levels: □Single Level; ■Double levels; □Triple levels
Standard color: Black. Other colors are also available and you can choose and order the color you want.

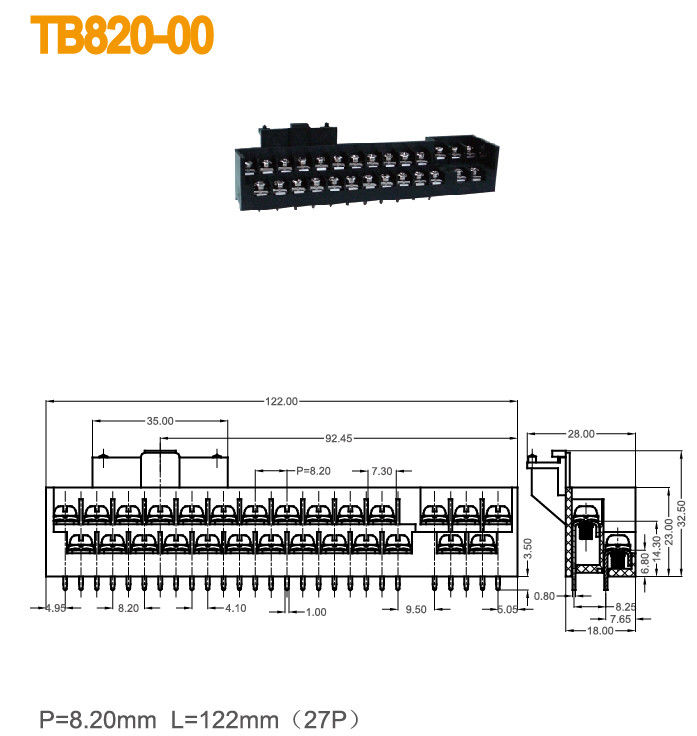

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/10 | 300/10 | |
| Wire Range AWG | 14-22 | 14-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 320 / 24 | 320 / 24 | 400 / 24 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.6 | ||
| Stripping Length mm | 6-7 | ||
| Screw / Torque / lbf.in | M 3 / 5-7 | ||
Applications:
Our products can be used in below fileds and industries:
1.Medical equipment, military, security, communication
2.Electrical equipment, power supply, PCB
3.Automation, industrial control, server site, frequency converters etc.
