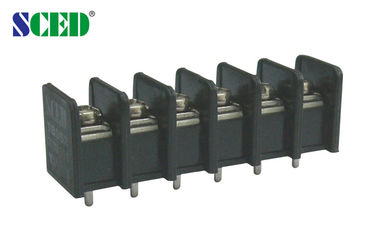

Black Pcb Terminal Blocks 20A/300V M4 Screw 9.525mm Pitch UL94-V0 Brass

Black Pcb Terminal Blocks 20A/300V M4 Screw 9.525mm Pitch UL94-V0 Brass

    • Black Pcb Terminal Blocks 20A/300V M4 Screw 9.525mm Pitch UL94-V0 Brass
    • Black Pcb Terminal Blocks 20A/300V M4 Screw 9.525mm Pitch UL94-V0 Brass
  • Black Pcb Terminal Blocks 20A/300V M4 Screw 9.525mm Pitch UL94-V0 Brass

    Detail produk:

    Place of Origin: China
    Nama merek: SCED
    Sertifikasi: UL,CE,CUL,CQC and VDE etc.
    Model Number: TB952-00

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 1000 Piece/Pieces
    Harga: USD 0.048-0.11
    Packaging Details: Standard export packing carton, or according to customers demand
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Hubungi sekarang
    Detil Deskripsi produk
    Color: Black Screw: M4
    Torque: 10-13 lbf.in Plastic: PBT
    Poles: 2-24 poles Current: 20A
    Voltage: 300V Pitch: 9.525mm
    Imflammability Class: UL94-V0

    Black Barrier Terminal Block 20A/300V M4 Screw 9.525mm Pitch



    Detailed product Description:



    Pitch 9.525mm, 300V 20A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks

    ■Right angle wire inlet

    ■Single Level

    Standard color: Black. Other colors also available, you can order and select the color you want, such as grey, blue, green etc.



    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/20   300/10
    Wire Range AWG 12-22   12-22
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 500 / 32 630 / 32 800 / 32
    Rated Surge Voltage KV 6 6 6
    Rated Connecting Capacity mm2 4
    Material
    Insulation Material / Inflammability Class PBT / UL94, V-0
    Terminal / Plating Brass / Tin Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    PCB Hole Diameter mm φ2.2
    Stripping Length mm 8-9
    Screw / Torque / lbf.in M 4/ 10-13



    Competitive Advantage:



    1. Good quality and reasonable price
    2. Quick response and good after-sales service
    3. More than 1000 models for selection
    4. OEM and ODM servicce

    Applications:



    Our products can be used in a lot of fileds and industries, such as medical equipment, military, security, power supply, electrical equipment, PCB, industrial control etc.



    Black Pcb Terminal Blocks 20A/300V M4 Screw 9.525mm Pitch UL94-V0 Brass
