| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | AO-6/58 |
| Kuantitas min Order: | 1000pcs |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 1KK poles each monthly |
| Bahan: | PA66 | tubuh isolasi: | PA66, UL94, VO |
|---|---|---|---|
| Sekrup: | M6 | tegangan: | 150V |
| Arus: | 30A | Torsi sekrup: | 18 Ibf · di |
| Item: | Aksesori terminal | Papan konduksi: | Tembaga |
| Cahaya Tinggi: | din rail mounting accessories,wire terminal block connectors |
||

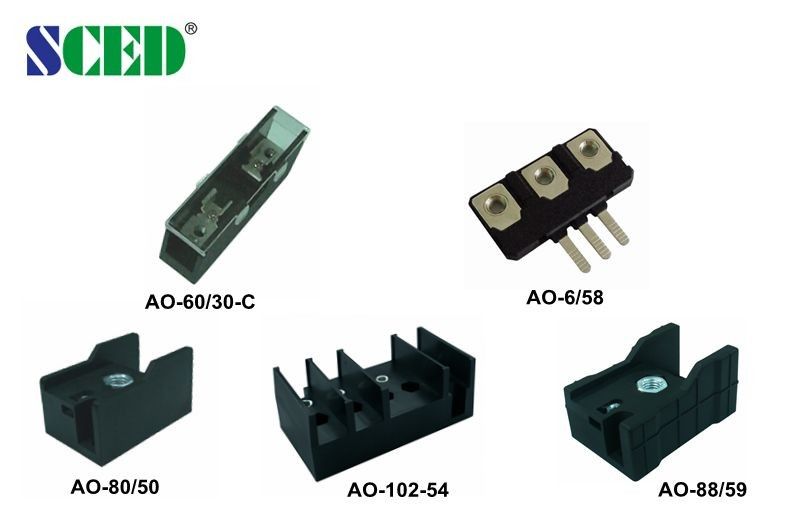

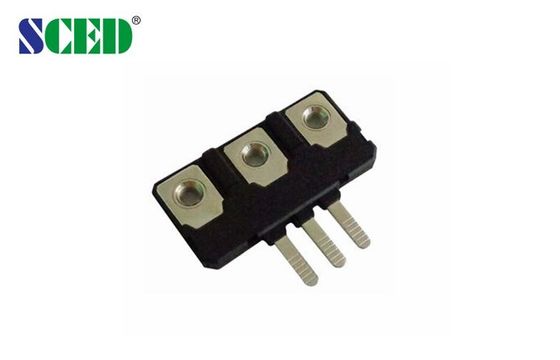

150V 30A Terminal Block Accessories PA66 M6 Screw Copper Conducton Board
Detail:
Terminal Accessories,
PCB terminal,
Electrical components
1. Metal terminal connect accessories can be worked as a terminal block after mount on PCB,
2. Some simple metal part components will works as the jumper and other assistant functions.
3. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, etc..
Data:
| Model | AO-6/58 |
| Technical Data | |
| Insulation Body | PA66, UL94, V-O |
| Conduction Board | Copper/ Nickel Plated |
| M6 Nut | M6, Steel, Zinc Plated |
| Screw Torque | 13 Ibf·in |
| Rated Parameters | 150V, 30A |
Competitive Advantage:
Drawing Photo:
