Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Warna: | Hitam | Plastik: | PBT |
---|---|---|---|
Voltase: | 600V | Saat ini: | 30A |
Melempar: | 10mm | Polandia: | Setiap tiang tersedia |
Terminal: | Kuningan | Baut: | M3.5 |
Pengupasan Panjang: | 10-11mm | Jangkauan Kawat: | 10-22 AWG |
Cahaya Tinggi: | barrier type terminal block,pcb terminal blocks |

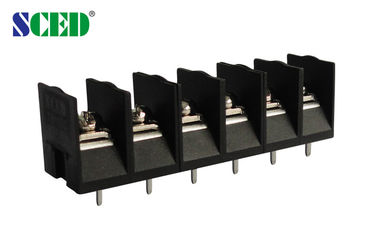

Plastic PBT Barrier Terminal Blocks Brass 10mm Pitch 600V 30A Screw M3.5
Detailed product Description:
Pitch 10.00mm, 600V 30A, 9-2P or 3P, Barrier Terminal blocks, power terminal blocks
■Right angle wire inlet
■Single Level
Standard color: Black and other colors also can be available.
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 30 | 600 / 30 | 600 / 5 |
Wire Range AWG | 10-22 | 10 / 22 | 10-22 |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 500 / 30 | 800 / 30 | 1000 / 30 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 2.5 | ||
Material | |||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Terminal / Plating | Brass /Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ1.6 | ||
Stripping Length mm | 10-11 | ||
Screw / Torque / lbf.in | M 3.5 / 8-10 |
Competitive Advantage:
Applications:
Normally our products will be used in below industries:
1.Industry Control, Automation, Communication, Electric Power, Security, Medical Equipment, Military
2.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting and so on.
