| Tempat asal: | Guangdong China |
| Nama merek: | SCED |
| Sertifikasi: | UL,CE |
| Nomor model: | TR-10N-01 |
| Kuantitas min Order: | 500 Piece/Pieces |
|---|---|
| Harga: | USD 0.215 -0.432 Per Pole |
| Kemasan rincian: | Normally Our Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 5-20 Working Days |
| Syarat-syarat pembayaran: | T/T, L/C |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Melempar: | 14.5mm | Polandia: | 2-16 tiang |
|---|---|---|---|
| Voltase: | 600V | Saat ini: | 65A |
| Jangkauan Kawat: | 6-24 AWG | Bahan: | PA66 |
| Kelas Inflammability: | UL94-V0 | Pengupasan Panjang: | 9-10mm |
| Baut: | M5 | Penjepit Kandang: | Kuningan |
| Cahaya Tinggi: | pcb terminal block connectors,pcb mount terminal block |
||

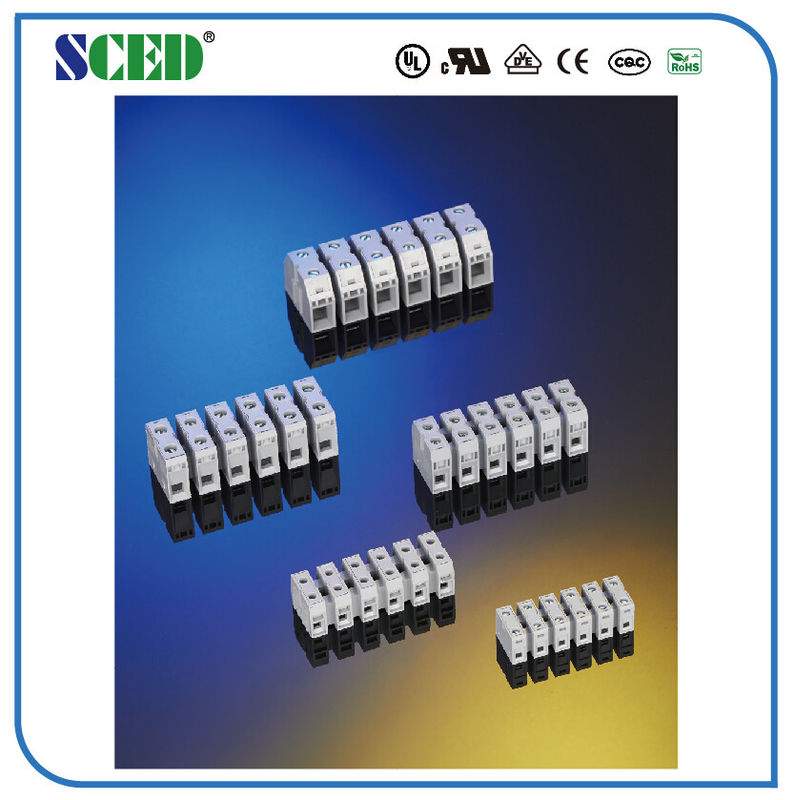

Pitch 14.5mm Feed Through Terminal Block 2-16 Poles 600V 65A
Detailed product Description:
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 65 | 600 / 65 | 600 / 5 |
| Wire Range AWG | 6-24 | 6-24 | 6-24 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 / 65 | 1000 / 65 | 1000 / 65 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 10 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Conduction Board / Plating | Copper / Nickel Plated | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 9-10 | ||
| Screw / Torque / lbf.in | M5 / 10.6-13 | ||
Pitch 14.50mm, 600V 65A, 2-16P, Feed Through Terminal Blocks
■Wire Inlet:right angle
■Single Level
Standard color: Grey and other colors are available as well.
Applications:
Our products are often used in power supply, industril control, security, medical equipment, communication and automation and so on.
Competitive Advantage:
