| Tempat asal: | China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TR-95N-02F |
| Kuantitas min Order: | 5000 Piece/Pieces |
|---|---|
| Harga: | USD 2.03-4.06 per Pole |
| Kemasan rincian: | Our Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 5-20 Working Days |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Voltase: | 600V | Saat ini: | 230A |
|---|---|---|---|
| Lebar Terminal: | 25mm | Bahan Isolasi: | PA66 |
| Kelas Inflammability: | UL94-V0 | Papan Konduksi: | Tembaga |
| Pengupasan Panjang: | 27mm | Baut: | M8 |
| pelapisan: | berlapis timah | Jangkauan Kawat: | 4-4/0 AWG |
| Cahaya Tinggi: | wiring terminal block,feed through terminal blocks |
||

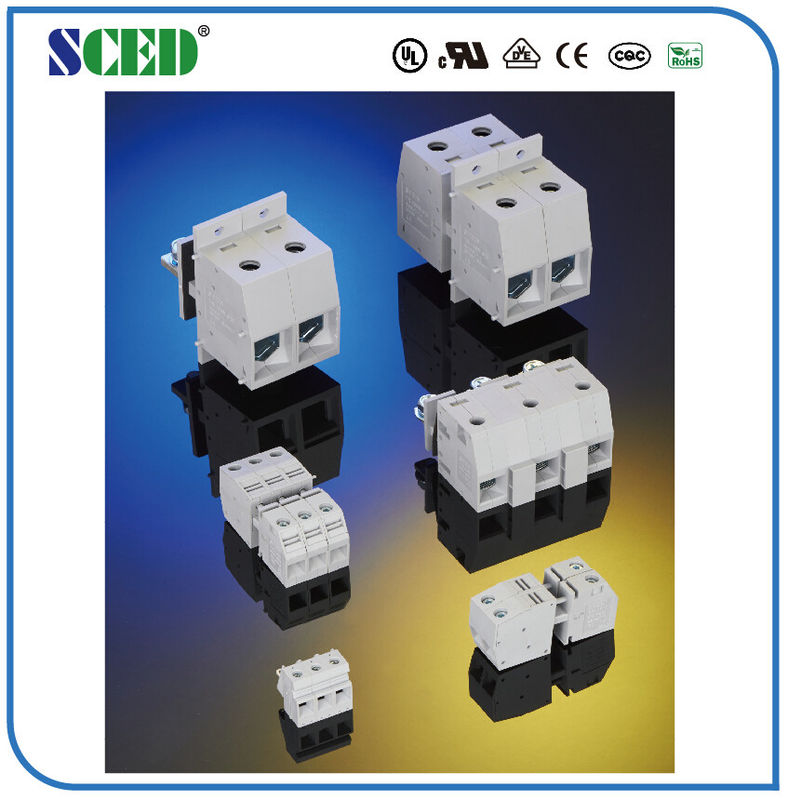

PA66 Through Panel Terminal Blocks 600V/230A 25mm Terminal Width
Detailed product Description:
Pitch 25.0mm, 600V 230A, 1P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
Standard color: Grey and other colors also can be available.
■Wire Inlet:right angle
■Single Deck
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 230 | 600 / 5 | |
| Wire Range AWG | 4-4/0 | 4-4/0 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 830 / 232 | 1000 / 232 | 1000 / 232 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 95 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Steel / Nickel Plated | ||
| Conduction Board / Plating | Copper / Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 27 | ||
| Screw / Torque / lbf.in | M8 / 132-177 | ||
Competitive Advantage:
Applications:
Normally our products can be used in a lot of fields and industries, such as medical equipment, automation, industrial control, power supply, communication, electric lighting, security, invertors and converters and so on.
