| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TR-50N-05 |
| Kuantitas min Order: | 200 |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 100K poles each monthly |
| Aplikasi: | PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri | Warna: | Hitam |
|---|---|---|---|
| Nomor kontak: | 2P | Nada: | 32.00mm |
| Populer saat ini: | 160A | Tegangan pengenal: | 600V |
| Tipe: | Melalui Blok Terminal Panel, Melalui blok terminal Dinding, konektor Sekat | Berbagai Wire: | 22-2 / 0 |
| Cahaya Tinggi: | feed through terminal blocks,wiring terminal block |
||

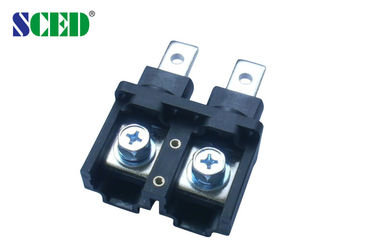

600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Deck; ■Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.

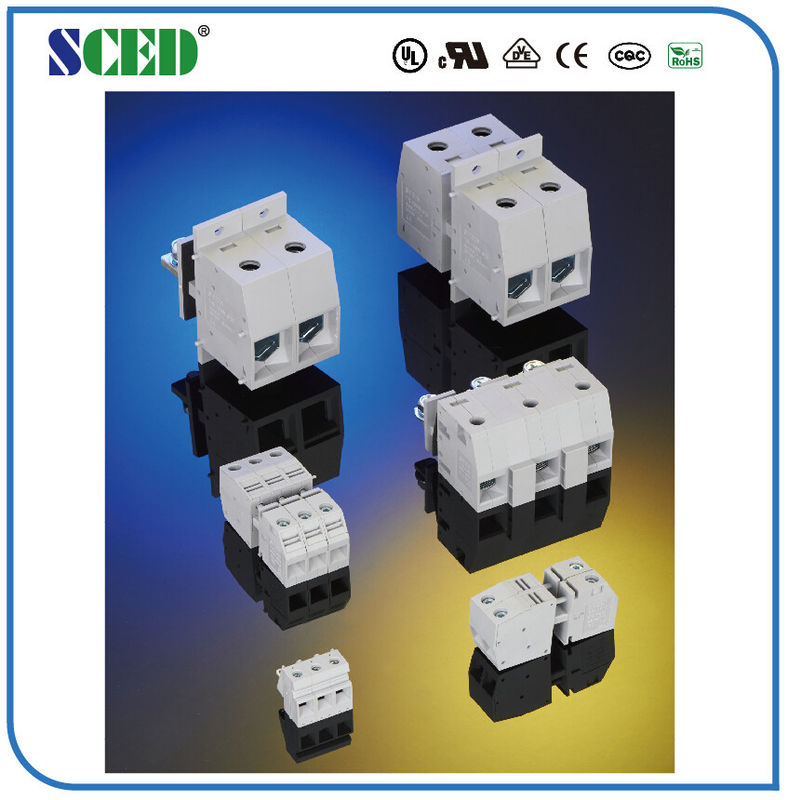

Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..
Parameter
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 160 |
|
|
|
Wire Range AWG |
22-2/0 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 160 |
800 / 160 |
1000 / 160 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
70 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
|||
|
Conduction Board / Plating |
Copper / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
1 |
||
|
Screw / Torque / lbf.in |
M8 / 32-40 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Drawing Photo:
