Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Levels: | single Levels | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
|---|---|---|---|
| Number of Contacts: | 11P | Pitch: | 20.20mm |
| Rated Current: | 15A | Type: | Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks |
| Wire range: | 18-3 AWG | Color: | Black |
| Cahaya Tinggi: | electrical terminal block,pcb terminal blocks |
||

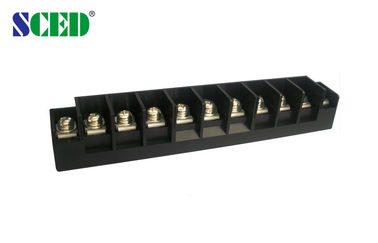

600v Plastic Barrier Terminal Block Connectors 11 Pin Barrier Strips 100A
Parameter
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 100 | 600 / 100 | 600 / 5 |
| Wire Range AWG | 18-3 | 18-3 | 18-3 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 1000 / 100 | 1000 / 100 | 1000 / 100 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 25 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | 2.9x10.4 | ||
| Stripping Length mm | 17-19 | ||
| Screw / Torque / lbf.in | M6 / 20-22 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
Drawing Photos:
Company information
Tag:
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors
