| Tempat asal: | China,Guangdong |
| Nama merek: | SCED |
| Sertifikasi: | UL,CE |
| Nomor model: | TB1100-01F |
| Kuantitas min Order: | 500 Piece/Pieces |
|---|---|
| Harga: | USD 0.045-0.089 |
| Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm |
| Waktu pengiriman: | 5-20 Working Days |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Melempar: | 11mm | Warna: | Hitam |
|---|---|---|---|
| Tiang: | 2-20 tiang | Voltase: | 300V |
| Saat ini: | 25A | Saluran Masuk Kawat: | Sudut kanan |
| Tegangan Lonjakan Terukur: | Tidak ada kelainan dalam 1 menit | Kelas Inflammability: | UL94, V-0 |
| Resistansi Isolasi: | Di atas DC500V, 500MΩ | ||
| Cahaya Tinggi: | barrier type terminal block,pcb terminal blocks |
||

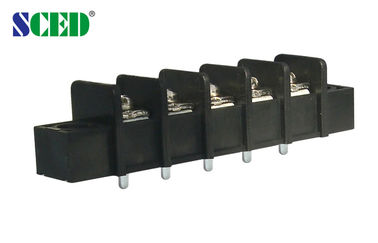

25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black
Detailed product Description:
Pitch 11.00mm, 300V 30A, 2P-20P, Barrier Terminal blocks, power terminal blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

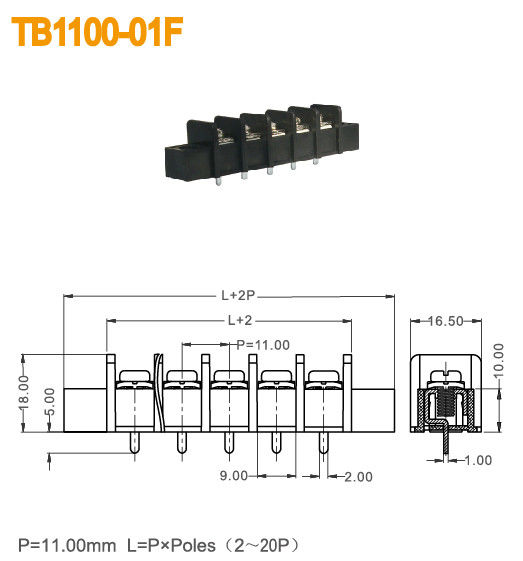

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 30 | 300 / 10 | |
| Wire Range AWG | 10-18 | 10-18 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 630 / 41 | 800 / 41 | 1000 / 41 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 6 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ2.6 | ||
| Stripping Length mm | 9-10 | ||
| Screw / Torque / lbf.in | M 4 / 10-13 | ||
Competitive Advantage:
