| Tempat asal: | SHENZHEN CHINA |
| Nama merek: | SCED |
| Sertifikasi: | CE ROHS |
| Nomor model: | TD75-02-C |
| Kuantitas min Order: | 200 |
|---|---|
| Harga: | USD 0.89-1.27/ Pole |
| Kemasan rincian: | Standard Export Carton Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 1KK poles each monthly |
| Type: | Panel Mount | Pitch: | 16.00mm |
|---|---|---|---|
| Screw: | steel M6 | Torque: | 20-22 Ibf.in |
| Conduction Board: | Brass | Insulation Material: | PBT |
| Wire Range: | 2-10 AWG | Rated Connecting Capacity: | 25 mm2 |
| Voltage: | 300V | Current: | 101A |
| Cahaya Tinggi: | pcb mount terminal blocks,panel mount terminal block connector |
||

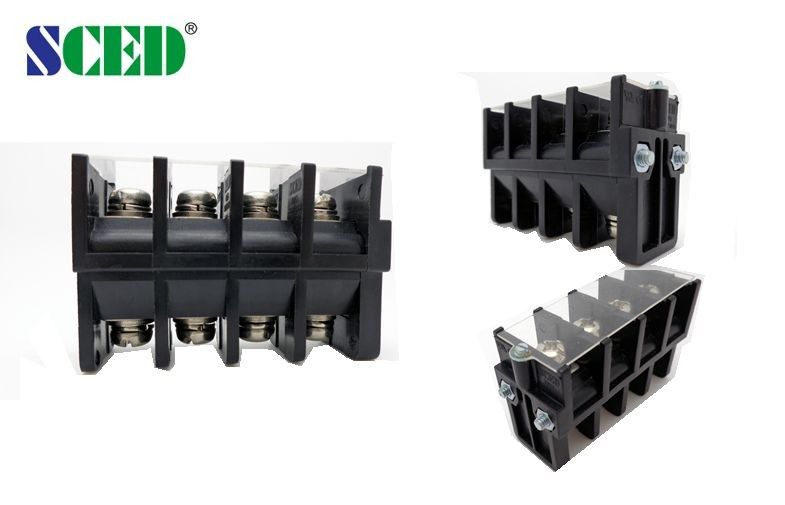

300V 101A Panel Mount Terminal Block 16.00mm Copper Conduction Board Screw Terminal
1. Quick Detail:
The current : 101A Voltage: 300V
Insulation Material: PBT Inflammability Classl: UL94, V-0 The weight: 3 poles(117g)
2. Description:
1. It can realize a variety of ways to entered more into the line of, such as into line, up and down into
the line before and after, a into a,
2. You can configure the article identifies the short, protective cover plate, sheet in the attachment.
3. The Current:101A.
3. Applications:
1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,
2. Industry Control, Automation,
3. Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

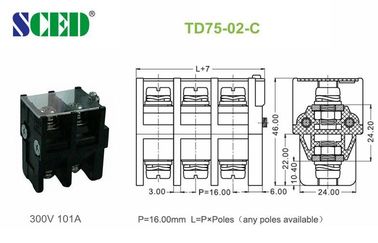

4. Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 101 |
300 / 10 |
|
|
Wire Range AWG |
2-10 |
2-10 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
320 / 101 |
400 / 101 |
630 / 101 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
25 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Conduction Board / Plating |
Copper / Nickel Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
12-13 |
||
|
Screw / Torque / lbf.in |
M6 / 20-22 |
||
5. Feature Advantage:
1. Perforation terminal block is widely used in Industrial Control, Power Supply, Energy Saving, etc.
2. It can be stackable to be different poles, easy to be mounted on PCB or control board,
3. It has very good mechanical properties and electrical properties,
6. Competitive Advantage:
1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;
2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a high level of service;
3. Discount offered is based on qty.
Tag: Screw Terminal Block, Power Terminal Block, Panel Mount Terminal Block
If you need this product, please tell us how many poles and quantity do you want? Welcome your inquiry!
