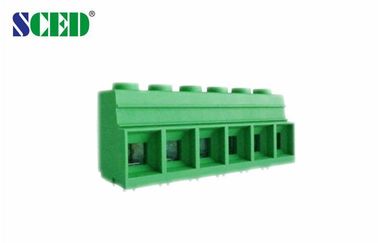

2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector

2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector

    • 2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector
    • 2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector
  • 2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TJ1500-00

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 300PCS
    Harga: USD 0.5-0.6 / Pole
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1.2KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
    Number of Contacts: 2-9 Poles Pitch: 15.00mm
    Rated Current: 115A Rated Voltage: 600V
    Wire Range: 2-20 AWG Material housing: PA66

    Pcb Screw Terminal Block 15.00mm 115A Hign Current Terminal Connector 2 - 9 pin

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
    ■Single Deck;  □Double decks;  □Triple decks
    Standard color:Green. Other colors also available, please refer to below How to Order and select the color you

     want.

    Tag:
    PCB terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
    blocks, terminal block manufacturer


    How to order:
    2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector


    Applications:

    PCB, Frequency Converters, Server Site, Switch,
    Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication,
    Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 115





    Wire Range                               AWG

    2-20





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    1000 / 125

    1000 / 125

    1000 / 125

    Rated Surge Voltage                     KV

    8

    8

    8

    Rated Connecting Capacity           mm2

    35

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Steel /Zinc Plated

    Terminal / Plating

    Copper / Tin Plated

    Screw / Plating Steel / Zinc Plated

    Other Data



    PCB Hole Diameter                 mm

    φ2.0

    Stripping Length                    mm

    18

    Screw / Torque                     / Ibf.in M5 / 18-22



    Competitive Advantage:


    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand



    ​Drawing Photo



    2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector
