| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TJ1000-00 |
| Kuantitas min Order: | 500-1000 |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 1.2KK poles each monthly |
| Aplikasi: | PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri | Warna: | hijau |
|---|---|---|---|
| Nomor kontak: | Polandia apa pun | Nada: | 10.00mm |
| Populer saat ini: | 66A | Tegangan pengenal: | 600V |
| Berbagai Wire: | 4-20 AWG | perumahan bahan: | PA66 |
| Cahaya Tinggi: | spring clamp terminal block,wiring terminal blocks |
||

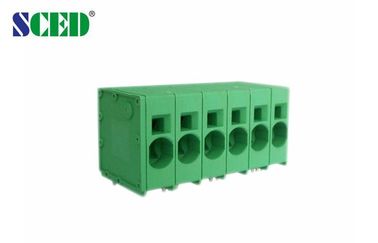

Screless Terminal Block 10.00mm Any Poles 600V 66A Copper Terminal Connector
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color:Green. Other colors also available, please refer to below How to Order and select the color you
want.
Tag:
PCB terminal blocks, PCB screwless terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch,
Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication,
Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 66 |
|
|
|
Wire Range AWG |
4-20 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
1000 / 76 |
1000 / 76 |
1000 / 57 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
16 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Stainless Steel/- |
||
|
Terminal / Plating |
Copper / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.8 |
||
|
Stripping Length mm |
18-20 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Drawing Photo
