Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Tipe: | Blok Terminal Pluggable, Blok Terminal Plug-in | Nada: | 2.50mm |
|---|---|---|---|
| Nomor kontak: | 2P-24P | Tegangan pengenal: | 150V |
| Populer saat ini: | 4A | Warna: | hijau |
| Aplikasi: | Catu Daya, Penerangan Listrik, Kontrol Industri | Sertifikat: | CE |
| Dimensi Pin: | 0.8 * 0.8 | Bahan: | PA66 |
| Cahaya Tinggi: | power terminal block connector,power distribution terminal block |
||

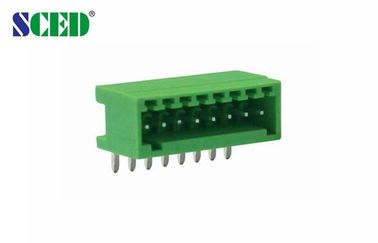

PA66 Plastic Male Connector 2.50mm Screwless PCB Plug In Terminal Block 2P-24P
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
How to order:
■Single Level; □Double Levels; □Triple Levels
This male socket match with female plug series: TP254P-01
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

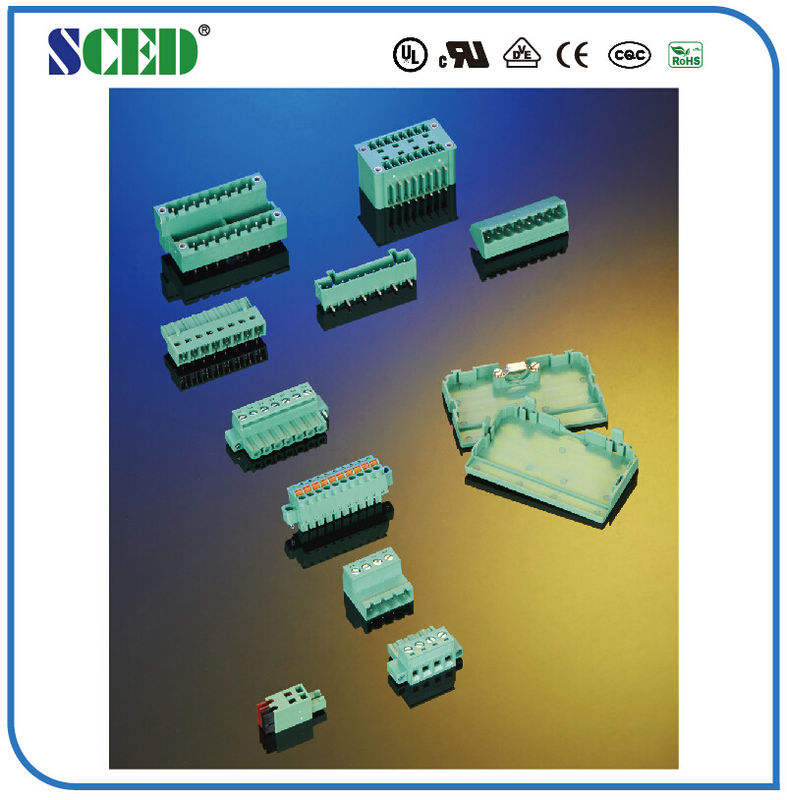

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
150 / 4 |
|
|
|
IEC Technical Data |
|
|
|
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 4 |
250 / 4 |
250 / 4 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
|
|
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 (THR: PA46 UL94, V-0) |
||
|
Clamp Cage / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
1.2 |
||
|
Pin Dimension mm |
0.8*0.8 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Drawing photo:
tag: plug in terminal block, Bent pin terminal block, male socket, green connector
