| Tempat asal: | Guangdong, China |
| Nama merek: | SCED |
| Sertifikasi: | UL,CE,CUL,CQC and VDE etc. |
| Nomor model: | TR-10N-07 |
| Kuantitas min Order: | 500 Piece/Pieces |
|---|---|
| Harga: | USD 0.45-0.85 per Pole |
| Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 5-20 working days |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Saat ini: | 65A | Voltase: | 300V |
|---|---|---|---|
| Bahan Isolasi: | PA66 | Lebar Terminal: | 10.1mm |
| Baut: | Baja | Pengupasan Panjang: | 11mm |
| Jangkauan Kawat: | 6-24 AWG | Kelas Inflammability: | UL94, V-0 |
| Tegangan Lonjakan Terukur: | Tidak ada kelainan dalam 1 menit | Resistensi Kontak: | Kurang dari 8mΩ |
| Cahaya Tinggi: | feed through terminal blocks,wiring terminal block |
||

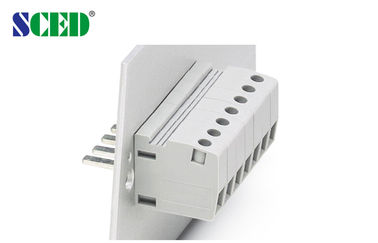

300V 65A Through Panel Terminal Blocks UL94-V0 Brass M4 PA66 10.1mm Terminal Width
Detailed product Description:
Pitch 10.1mm, 300V 65A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment etc..

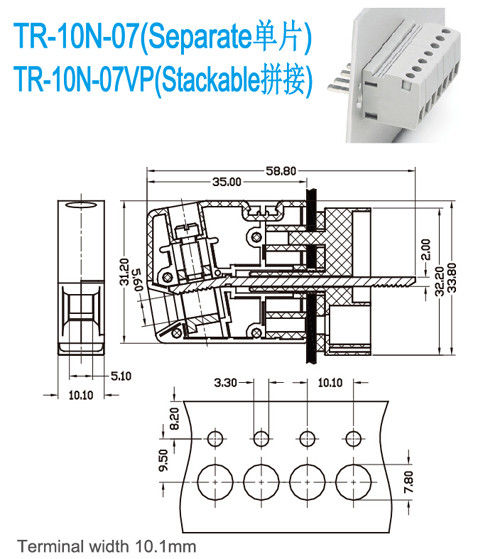

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 65 |
|
600 / 5 |
|
Wire Range AWG |
6-24 |
|
6-24 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 76 |
800 / 76 |
1000 / 76 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
10 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Conduction Board / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
11 |
||
|
Screw / Torque / lbf.in |
M4 / 10.6-13 |
||
Competitive Advantage:
