| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TP254P-01 |
| Kuantitas min Order: | 500 pcs |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 1KK poles each monthly |
| Mengetik: | Blok Terminal Pegas, Blok Terminal Pluggable, Blok Terminal Plug-in | Nada: | 2.50mm |
|---|---|---|---|
| Nomor kontak: | 2P-24P | Berbagai Wire: | 28-20 AWG |
| Tegangan pengenal: | 150V | Populer saat ini: | 4A |
| Warna: | hijau | Aplikasi: | PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri |
| Cahaya Tinggi: | power terminal block connector,power distribution terminal block |
||

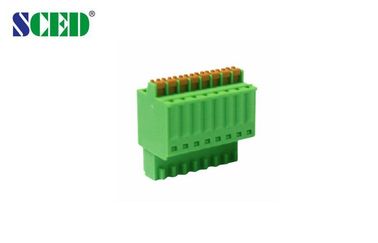

2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector 150V 4A 2.50mm
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
How to order:
■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP254H-00 TP254H-00V
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

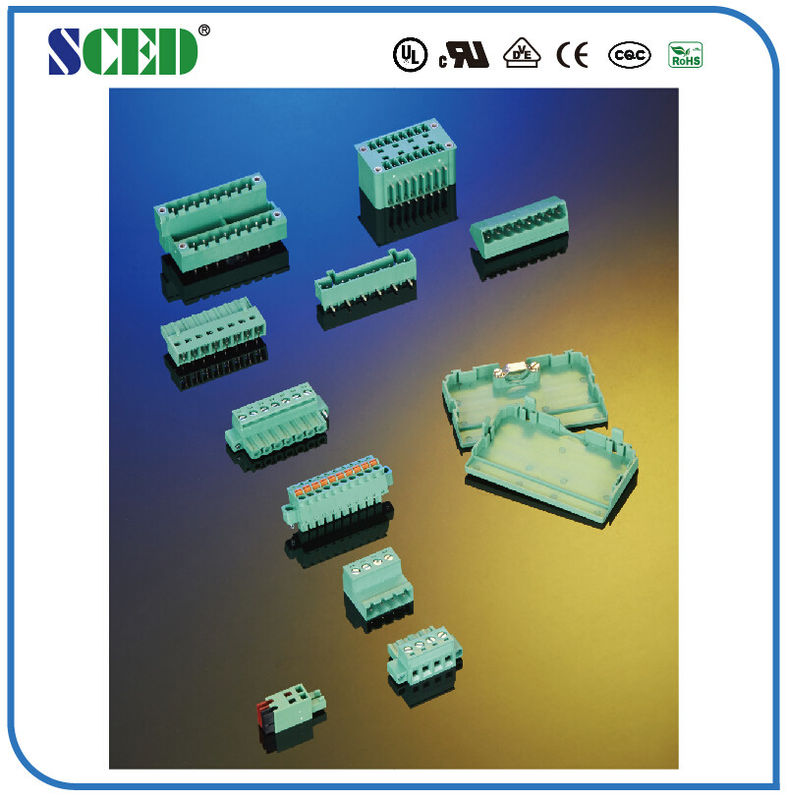

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
150 / 4 |
|
|
|
Wire Range AWG |
28-20 |
|
|
|
IEC Technical Data |
|
|
|
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 4 |
250 / 4 |
250 / 4 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
0.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Stainless steel |
||
|
Contactor / Plating |
Phosphor Bronze / Tin Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
7 |
||
|
Screw / Torque / lbf.in |
|
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Drawing photo:
