| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TR20-02-M0 |
| Kuantitas min Order: | 500 |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 1KK poles each monthly |
| Mengetik: | Blok Terminal Pemasangan Panel, Blok terminal penghalang, Blok terminal daya, Blok terminal listrik | Nada: | 10.80mm |
|---|---|---|---|
| Nomor kontak: | Setiap tiang yang tersedia | Berbagai Wire: | 24-12 |
| Tegangan pengenal: | 600V | Populer saat ini: | 20A |
| Warna: | Hitam | Aplikasi: | PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri |
| Cahaya Tinggi: | panel mount terminal block connector,pcb mount terminal blocks |
||

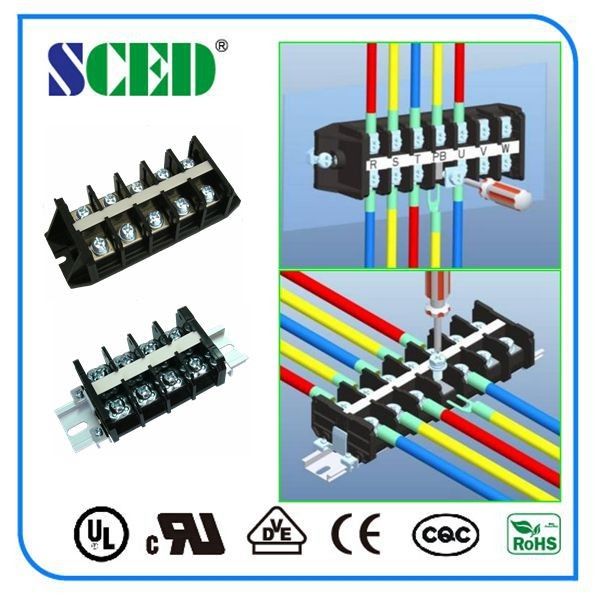

300V 20A Power Terminal Connector 10.8mm Panel Mounted Terminal Block Screw Barrier Type
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 20 |
600 / 20 |
|
|
Wire Range AWG |
24-12 |
24-12 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 /20 |
1000 / 20 |
1000 / 20 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
3.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
|
Conduction Board/ Plating |
Brass /Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
9-10 |
||
|
Screw Torque mm |
M4 / 10.6-13 |
||
Competitive Advantage:

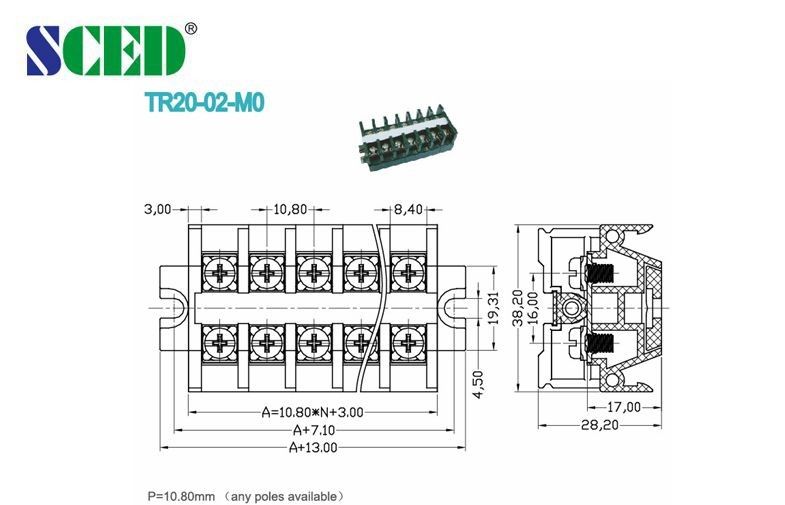

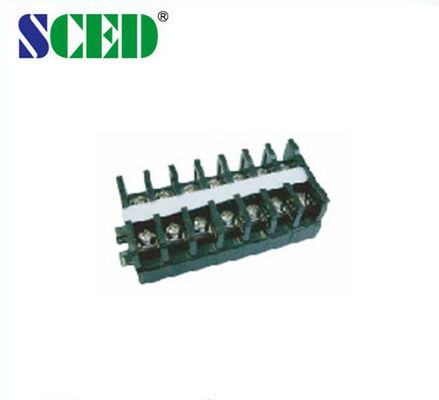

Drawing Photo:
