Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal

Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal

    • Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal
    • Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal
    • Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal
  • Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TR-3N-04

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Type: Panel Mount Terminal Block, Electrical terminal Block Pitch: 7.40mm
    Number Of Contacts: 7P Wire Range: 16-22
    Rated Voltage: 300V Rated Current: 20A
    Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

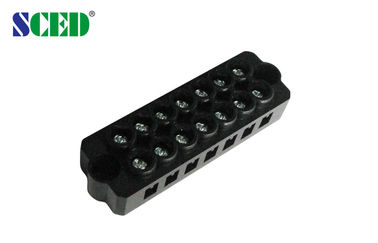

    Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal


    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
    ■Single Level;  □Double levels;  □Triple levels
    Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

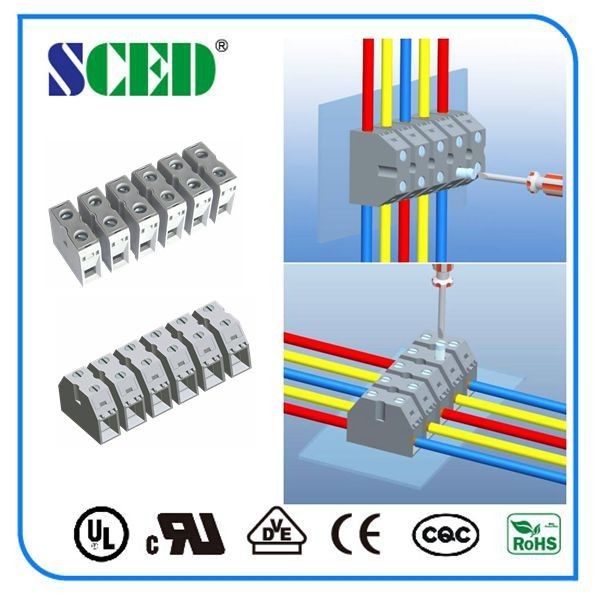

    Feed through terminal blocks, Power terminal blocks, Electrical terminal Blocks

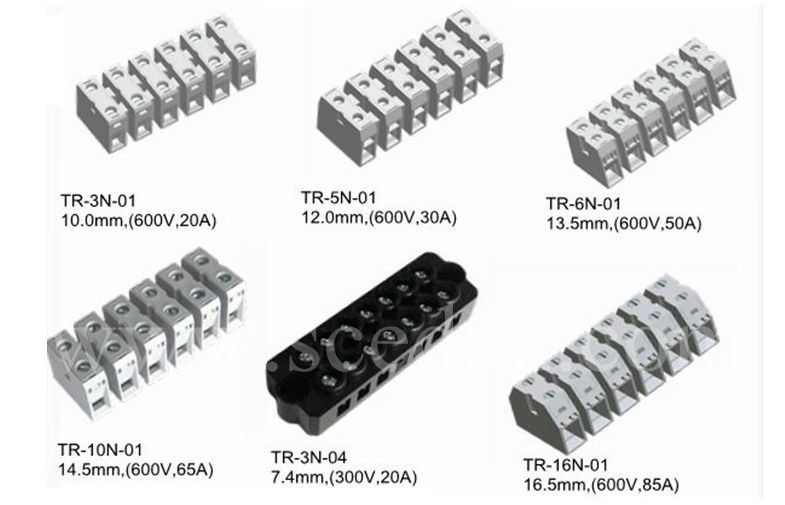

    How to order:
    Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal

    Applications:


    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 20

    300 / 20



    Wire Range                                AWG

    16-22

    16-22



    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    250 / 20

    320 / 20

    400 / 20

    Rated Surge Voltage                      KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    4

    Material



    Insulation Material / Inflammability Class

    PL/ UL94, V-0

    Conduction Board Plating



    Clamp Cage Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    Stripping Length                     mm

    5-6

    Screw / Torque                     / lbf.in

    M 3 / 4.4-5.3



    Drawing Photos:



    Panel Mount Terminal Connector Black 7.40mm 300V 20A 7P Feed Through Terminal

    Competitive Advantage:


    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
