Quick Connect 16-24 AWG 45 Degree Screw Terminal Block 2 Pin - 28 Pin 3.81mm

Quick Connect 16-24 AWG 45 Degree Screw Terminal Block 2 Pin - 28 Pin 3.81mm

    • Quick Connect 16-24 AWG 45 Degree Screw Terminal Block 2 Pin - 28 Pin 3.81mm
    • Quick Connect 16-24 AWG 45 Degree Screw Terminal Block 2 Pin - 28 Pin 3.81mm
  • Quick Connect 16-24 AWG 45 Degree Screw Terminal Block 2 Pin - 28 Pin 3.81mm

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TJ381-11

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 2KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
    Number of Contacts: 2P-28P Rated Current: 10A
    Rated Voltage: 300V Type: Screw clamp style
    Pitch: 3.81mm Degree: 45 degree wire inlet



    Quick Connect 16-24 AWG 45 Degree Screw Terminal Block 2 Pin - 28 Pin 3.81mm



    Detailed



    Pitch 3.81mm,

    300V 10A, 2P-28P,

    PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series



    Spec.



    Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet

    ■Single Deck;  □Double decks; Triple decks



    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/10





    Wire Range                               AWG

    16-24





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    160 / 10

    200 / 10

    400 / 10

    Rated Surge Voltage                      KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity           mm2

    1.0

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    PCB Hole Diameter                mm

    φ1.2

    Stripping Length                    mm

    4-5

    Screw / Torque                    / lbf.in

    M2 / 1.8-2.0





    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:

    Quick Connect 16-24 AWG 45 Degree Screw Terminal Block 2 Pin - 28 Pin 3.81mm



    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

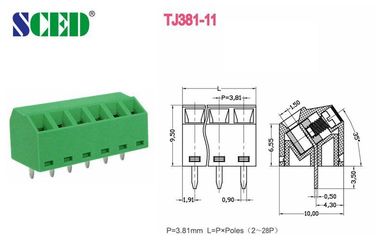

    Drawing:


    Quick Connect 16-24 AWG 45 Degree Screw Terminal Block 2 Pin - 28 Pin 3.81mm



    Tag:

    PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer
