3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet

3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet

    • 3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet
    • 3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet
  • 3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TP381H-20

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Kawat Inlet: Saluran masuk kawat vertikal Aplikasi: PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri
    Warna: hijau Nomor kontak: 2P-22P
    Nada: 3,50mm Populer saat ini: 8A
    Tegangan pengenal: 300V Tipe: Pasang Blok Terminal, Blok Terminal Pluggable, Blok Terminal Plug-in

    3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet





    How to order:

    3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet


    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
    Elevator, etc..

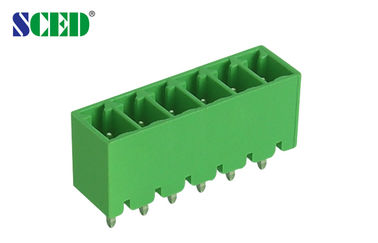

    Pitch 3.50mm Male Plug In Terminal Blocks with Vertical wire inlet 300V 8A, 2P - 22P


    □Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet
    ■Single Level;  □Double Levels;  □Triple Levels

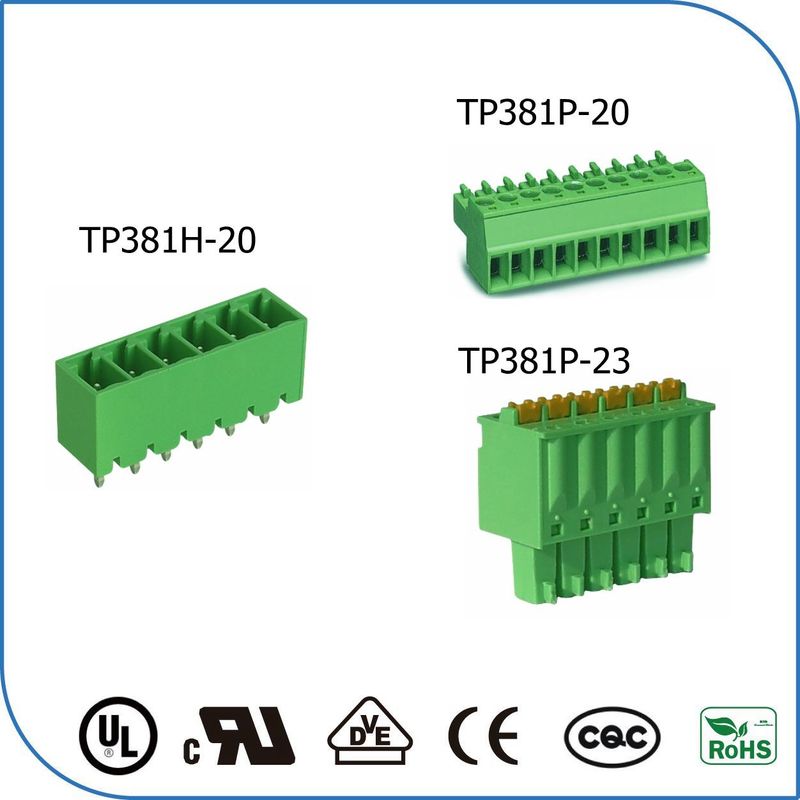

    This header match with plug series: TP381P-20, TP381P-21, TP381P-22, TP381P-23

    Standard color: Green. Other colors also available, please refer to below How to Order and select the color
    you want.

    Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 8





    Wire Range                               AWG







    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    160 / 8

    160 / 8

    320 / 8

    Rated Surge Voltage                    KV

    2.5

    2.5

    2.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Terminal / Plating

    Brass / Tin Plated

    Other Data



    PCB Hole Diameter               mm

    φ1.2

    PinDimension                        mm

    0.8 x 0.8





     Drawing Photo


    3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet

    Competitive Advantage:



    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand
