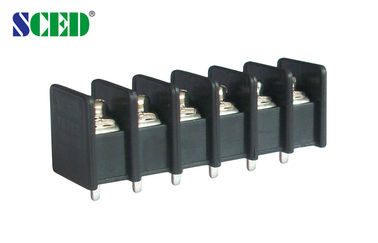

PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector

PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector

    • PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector
    • PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector
    • PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector
  • PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector

    Detail produk:

    Place of Origin: Guangdong,China
    Nama merek: SCED
    Sertifikasi: UL,CUL,CQC,CE, VDE etc.
    Model Number: TB762-01-D1

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500 Piece/Pieces
    Harga: USD 0.05-0.12
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Hubungi sekarang
    Detil Deskripsi produk
    Pitch: 7.62mm Current: 15A
    Voltage: 300V Poles: 2-24 poles
    Plastic: PBT Screw: M3
    Inflammability Class: UL94-V0 Contact Resistance: Less than 8mΩ
    Insulation Resistance: Above DC500V, 500MΩ Rated Surge Voltage: No abnormal within 1 minute

    PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector



    Detailed product Description:



    Pitch 7.62mm, 300V 15A, 2P-22P, Barrier Terminal Blocks, Power Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Level;  □Double levels;  □Triple levels

    Standard color: Black. Other colors also available.



    Applications:



    It can be used in the followings:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc.

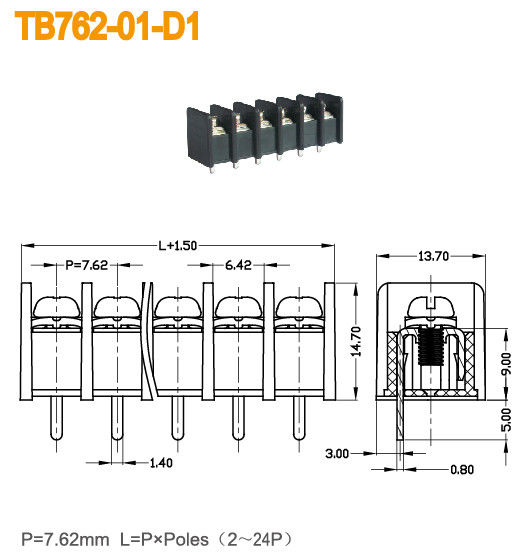

    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/15



    300/10

    Wire Range                       AWG

    14-22



    14-22

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    250 / 24

    320 / 24

    400 / 24

    Rated Surge Voltage                 KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.8

    Stripping Length                    mm

    7-8

    Screw / Torque                    / lbf.in

    M 3 / 5-7



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. 10 main series and more than 1000 models for selection
    5. OEM and ODM service can be provided

    PBT Barrier Terminal Block 7.62mm Pitch 15A 2-24 Poles Brass PCB Terminal Connector
